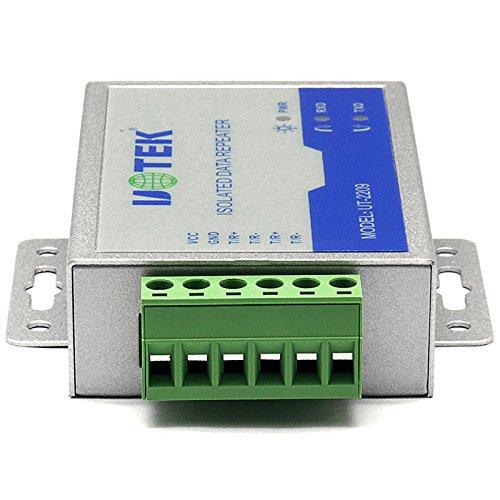

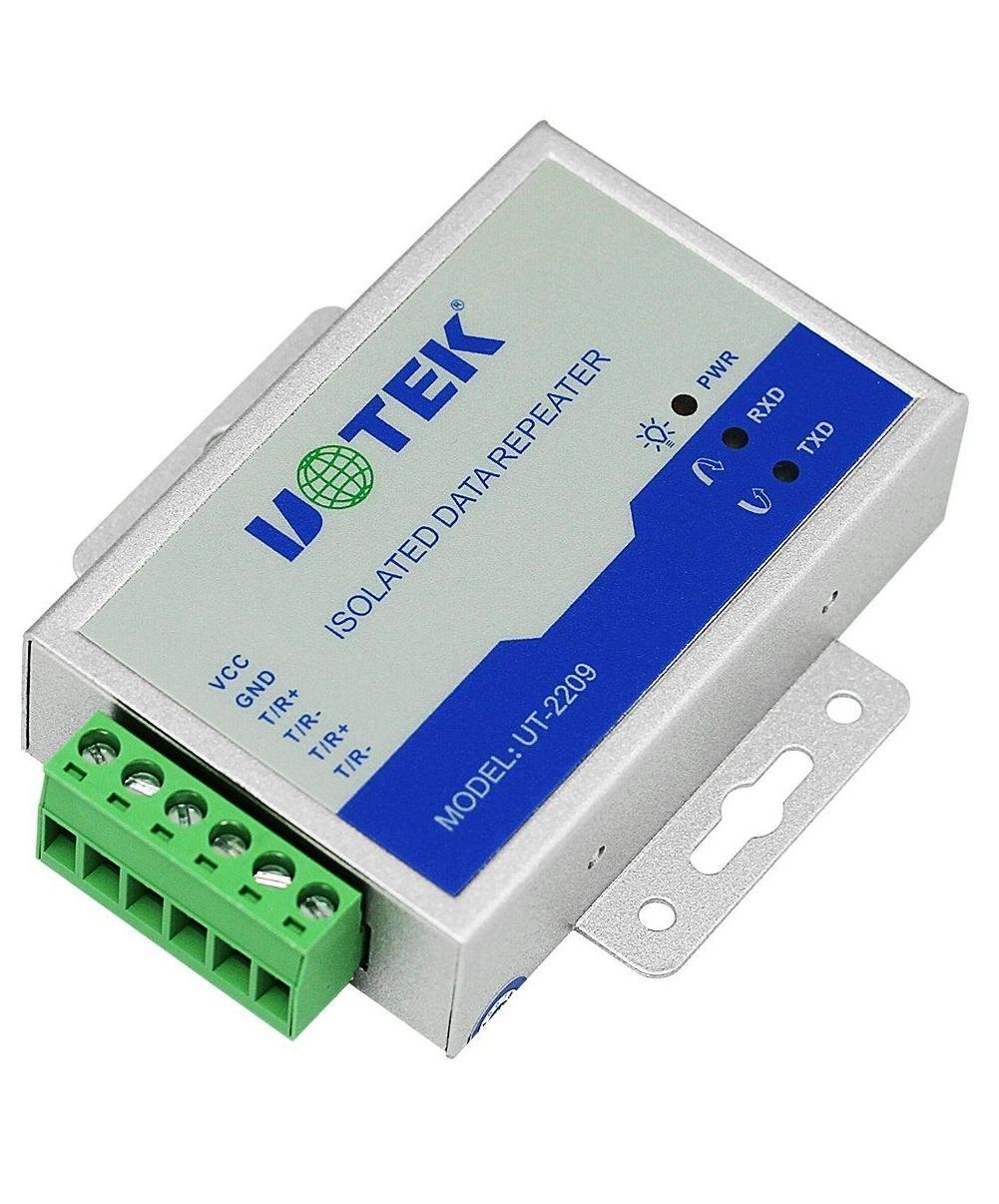

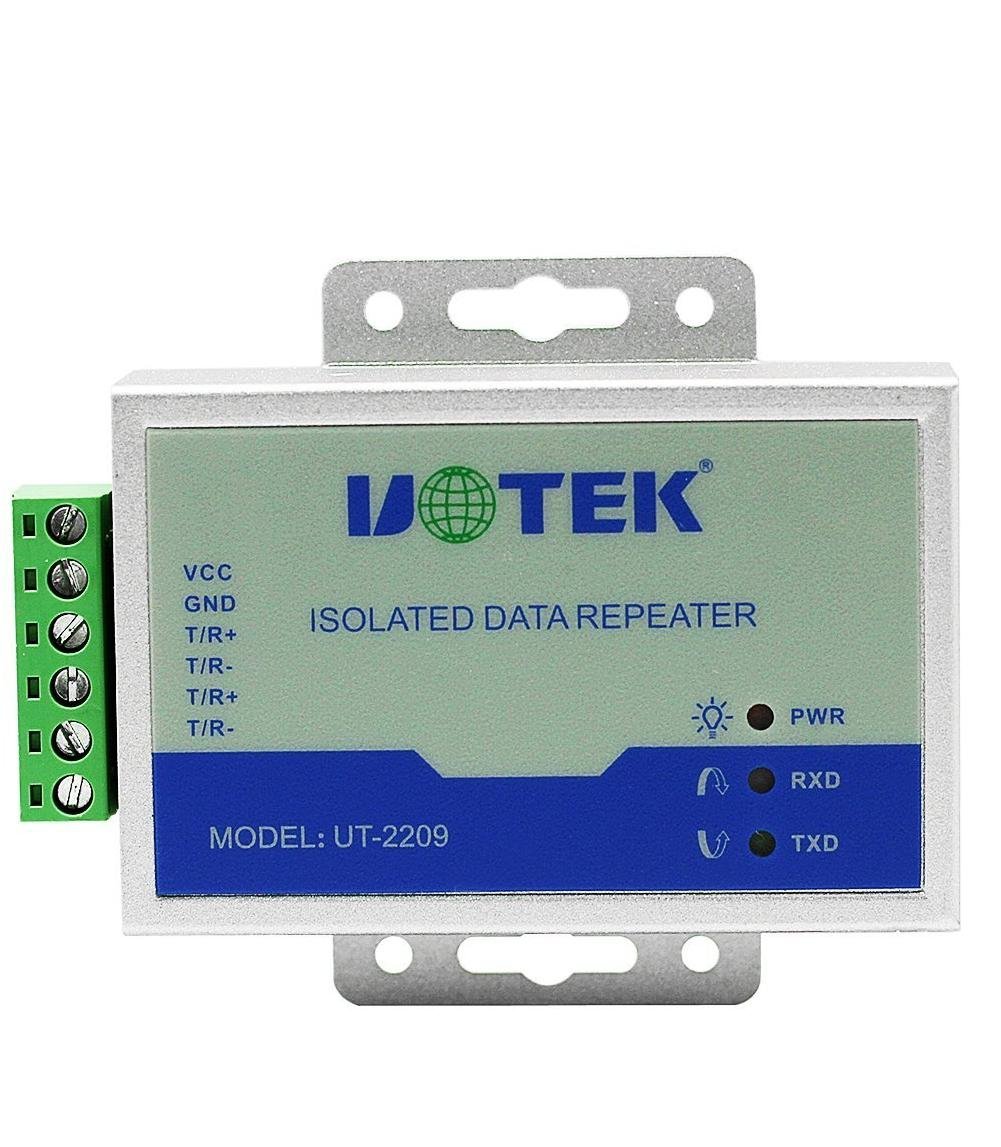

{"id":7126117777568,"title":"UTEK UT-2209 RS-485 Photoelectric Isolation Data Repeater","handle":"utek-ut-2209-rs-485-photoelectric-isolation-data-repeater","description":"\u003ch3\u003eUTEK UT-2209 RS-485 Photoelectric Isolation Data Repeater\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eUT-2209 is a repeater with optoelectronic isolation. It complies with RS-485\nstandard; it can extend the communication distance of RS-485 BUS network, and\nincrease the quantity of RS-485 network devices. The built-in DC\/DC isolated\nmodule can provide as high as 2,500Vrm isolated voltage; the fast instant\nvoltage restraint on both sides is designed to protect RS-485 interface; it\nadopts advanced TVS (TRANSIENT VOLTAGE SUPPRESSOR) instant voltage restraint;\nnormally, TVS tube is in high impedance state; when both sides of TVS tube\nsuffer from high power impact in a sudden, the voltage restraint will fast\nlower the impedance from both sides, and absorb in big current; with this, the\nvoltage on both sides are fixed at presupposed value, protects the component\nof circuit from damage. This voltage restraint provides 600W each wire with\nlightning and ESD protection, and surge voltage and instant overvoltage\nprotection on circuit which causing by all reasons; the tiny interelectrode\ncapacitance ensures high speed transmission for RS-485 ports. RS-485 adopts 2\nbits terminal block as input and output. This repeater is with built-in zero\ndelay auto receiving and transmitting conversion and unique I\/O circuit auto\ncontrol data flow direction without any handshake signal (RTS, DTR); there is\nno need jumper wire setting for full duplex (RS-422) and half duplex (RS-485)\nmode, plug \u0026amp; play.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStandards: RS-485 TIA\/EIA Connector: RS-485 2 bits terminal block input RS-485 2 bits terminal block output\u003c\/li\u003e\n \u003cli\u003eProtection: RS-485 provides with 600W lightning, surge, 15KV ESD protection each line Working mode: asynchronous half-duplex\u003c\/li\u003e\n \u003cli\u003eLEDs for indicating PWR TXD, and RXD activity Transmission media: twisted-pair or shielded cable\u003c\/li\u003e\n \u003cli\u003eBaudrate: 300BPS-115.2K BPS Dimension: 79mmX74mmX22mm Operating temperature: -40C to 85C\u003c\/li\u003e\n \u003cli\u003eRelative humidity: 5% to 95 %( Non-condensing) Works with all communication software, plug \u0026amp; play Transmission distance: 0-1,200m (115,200bps-9,600bps)\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2021-11-12T22:02:24+11:00","created_at":"2021-11-12T04:08:06+11:00","vendor":"U-Tek","type":"Serial Adapters","tags":["cocoon"],"price":27900,"price_min":27900,"price_max":27900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41334430728352,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B017YVIQ6W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"UTEK UT-2209 RS-485 Photoelectric Isolation Data Repeater","public_title":null,"options":["Default Title"],"price":27900,"weight":203,"compare_at_price":null,"inventory_management":null,"barcode":"6942108603155","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B017YVIQ6W.jpg?v=1645068843","\/\/dingoship.com.au\/cdn\/shop\/products\/71aVPMzB2xL.jpg?v=1636650486","\/\/dingoship.com.au\/cdn\/shop\/products\/61jUkCcPdaL.jpg?v=1636650486","\/\/dingoship.com.au\/cdn\/shop\/products\/61Gy0s39l3L.jpg?v=1636650486","\/\/dingoship.com.au\/cdn\/shop\/products\/519YZu8j4BL.jpg?v=1636650486"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B017YVIQ6W.jpg?v=1645068843","options":["Title"],"media":[{"alt":null,"id":24017279189152,"position":1,"preview_image":{"aspect_ratio":0.83,"height":1206,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B017YVIQ6W.jpg?v=1645068843"},"aspect_ratio":0.83,"height":1206,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B017YVIQ6W.jpg?v=1645068843","width":1001},{"alt":null,"id":23305080602784,"position":2,"preview_image":{"aspect_ratio":0.873,"height":1147,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71aVPMzB2xL.jpg?v=1636650486"},"aspect_ratio":0.873,"height":1147,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71aVPMzB2xL.jpg?v=1636650486","width":1001},{"alt":null,"id":23305080635552,"position":3,"preview_image":{"aspect_ratio":0.812,"height":1014,"width":823,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61jUkCcPdaL.jpg?v=1636650486"},"aspect_ratio":0.812,"height":1014,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61jUkCcPdaL.jpg?v=1636650486","width":823},{"alt":null,"id":23305080668320,"position":4,"preview_image":{"aspect_ratio":0.773,"height":1016,"width":785,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Gy0s39l3L.jpg?v=1636650486"},"aspect_ratio":0.773,"height":1016,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61Gy0s39l3L.jpg?v=1636650486","width":785},{"alt":null,"id":23305080701088,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/519YZu8j4BL.jpg?v=1636650486"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/519YZu8j4BL.jpg?v=1636650486","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eUTEK UT-2209 RS-485 Photoelectric Isolation Data Repeater\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eUT-2209 is a repeater with optoelectronic isolation. It complies with RS-485\nstandard; it can extend the communication distance of RS-485 BUS network, and\nincrease the quantity of RS-485 network devices. The built-in DC\/DC isolated\nmodule can provide as high as 2,500Vrm isolated voltage; the fast instant\nvoltage restraint on both sides is designed to protect RS-485 interface; it\nadopts advanced TVS (TRANSIENT VOLTAGE SUPPRESSOR) instant voltage restraint;\nnormally, TVS tube is in high impedance state; when both sides of TVS tube\nsuffer from high power impact in a sudden, the voltage restraint will fast\nlower the impedance from both sides, and absorb in big current; with this, the\nvoltage on both sides are fixed at presupposed value, protects the component\nof circuit from damage. This voltage restraint provides 600W each wire with\nlightning and ESD protection, and surge voltage and instant overvoltage\nprotection on circuit which causing by all reasons; the tiny interelectrode\ncapacitance ensures high speed transmission for RS-485 ports. RS-485 adopts 2\nbits terminal block as input and output. This repeater is with built-in zero\ndelay auto receiving and transmitting conversion and unique I\/O circuit auto\ncontrol data flow direction without any handshake signal (RTS, DTR); there is\nno need jumper wire setting for full duplex (RS-422) and half duplex (RS-485)\nmode, plug \u0026amp; play.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStandards: RS-485 TIA\/EIA Connector: RS-485 2 bits terminal block input RS-485 2 bits terminal block output\u003c\/li\u003e\n \u003cli\u003eProtection: RS-485 provides with 600W lightning, surge, 15KV ESD protection each line Working mode: asynchronous half-duplex\u003c\/li\u003e\n \u003cli\u003eLEDs for indicating PWR TXD, and RXD activity Transmission media: twisted-pair or shielded cable\u003c\/li\u003e\n \u003cli\u003eBaudrate: 300BPS-115.2K BPS Dimension: 79mmX74mmX22mm Operating temperature: -40C to 85C\u003c\/li\u003e\n \u003cli\u003eRelative humidity: 5% to 95 %( Non-condensing) Works with all communication software, plug \u0026amp; play Transmission distance: 0-1,200m (115,200bps-9,600bps)\u003c\/li\u003e\n \u003c\/ul\u003e"}
