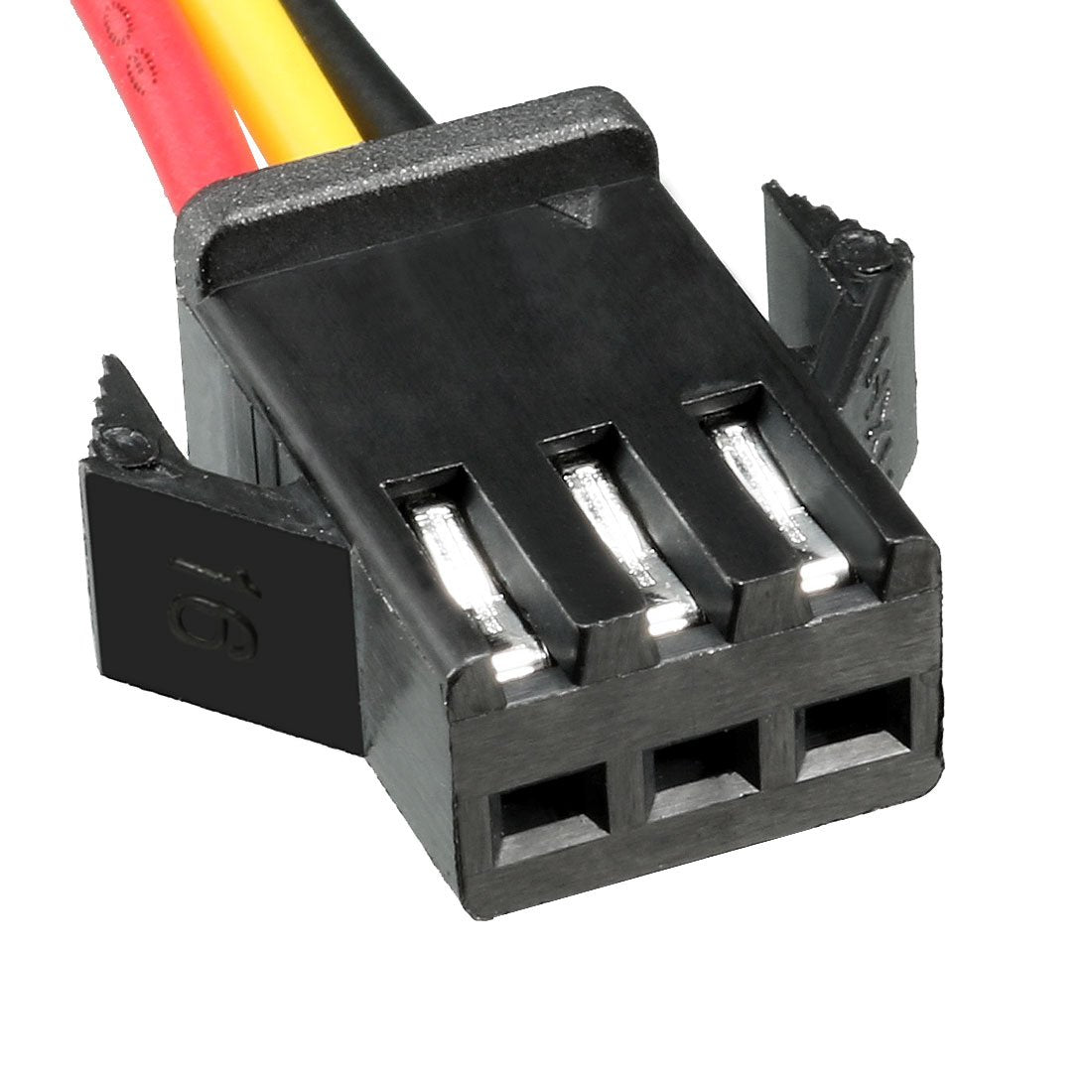

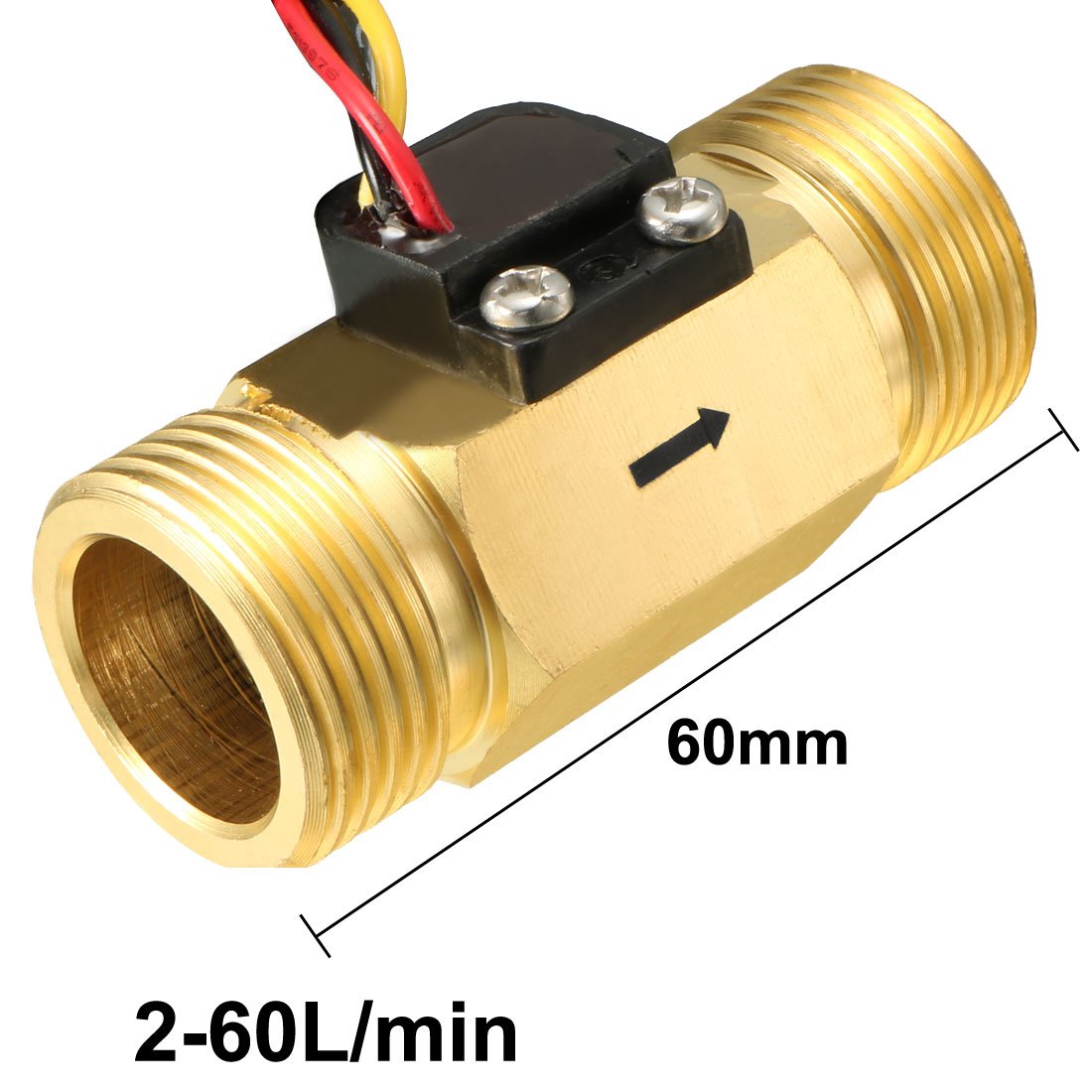

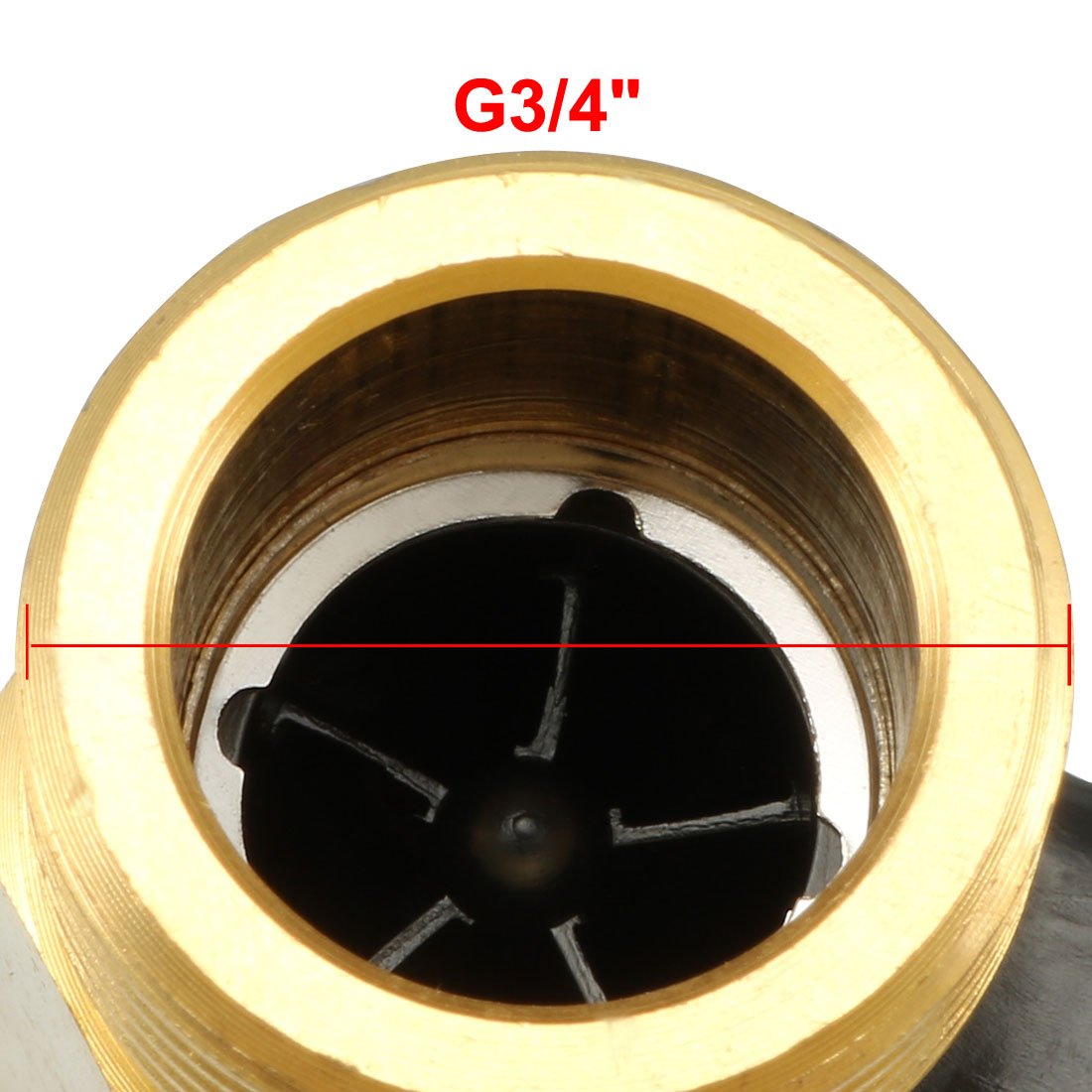

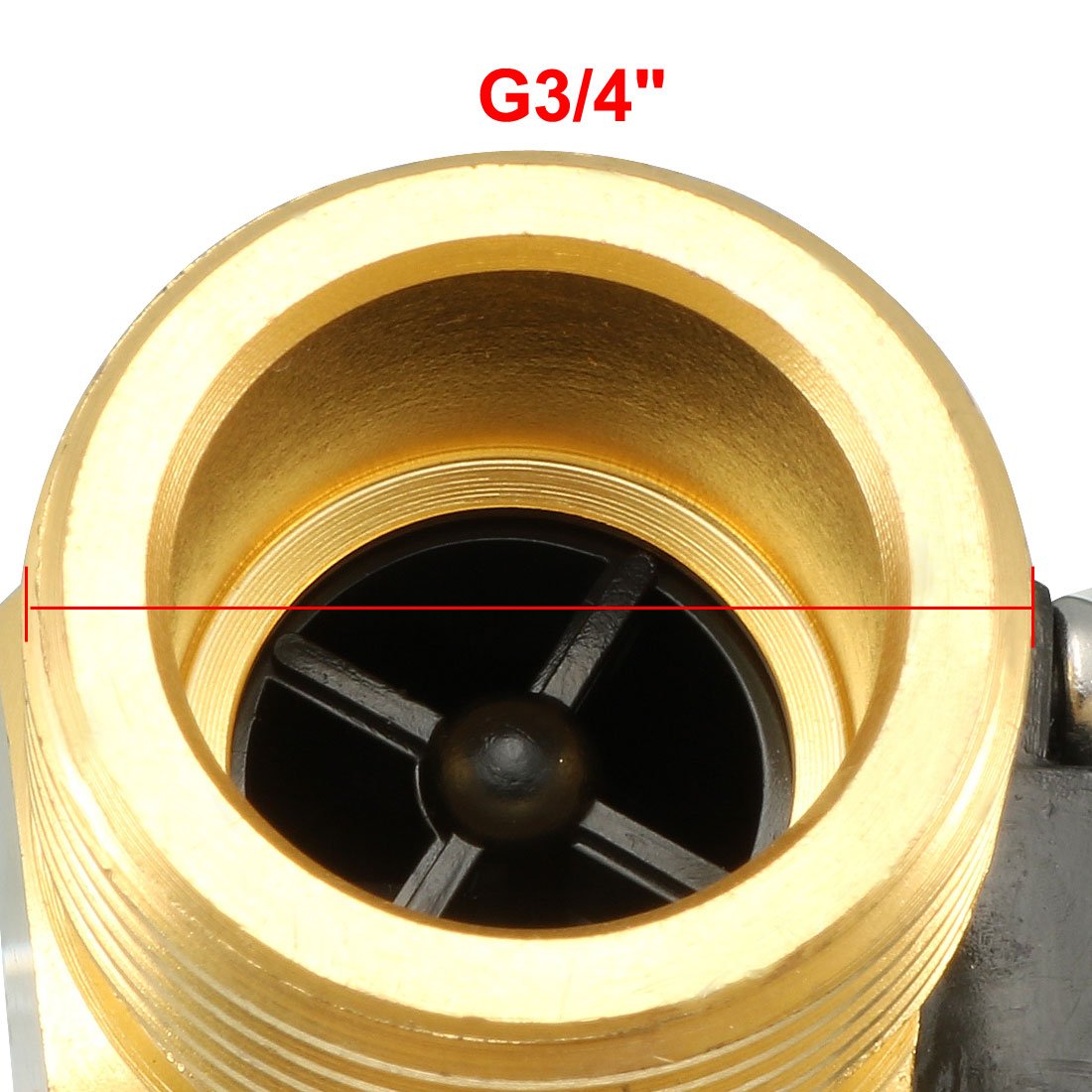

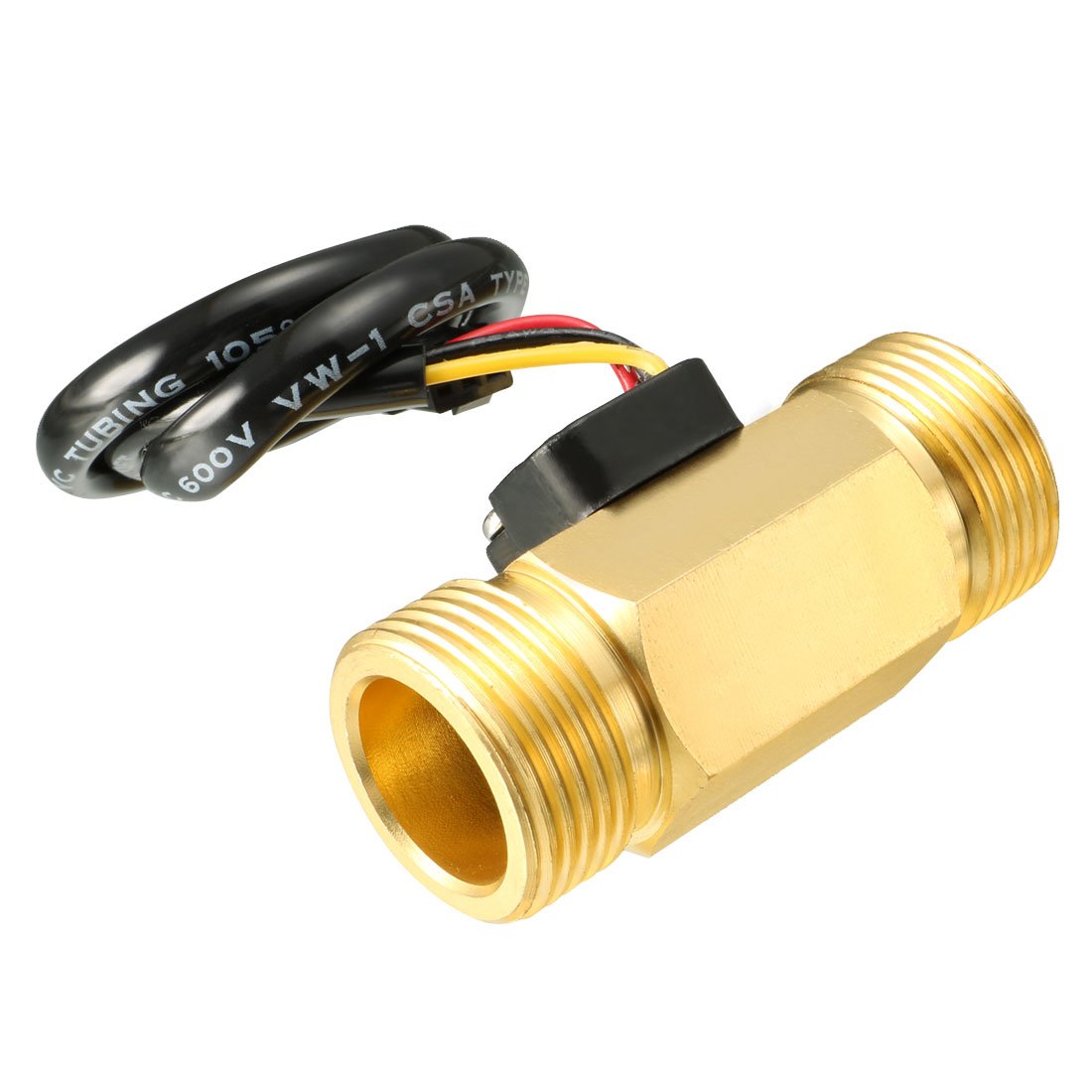

{"id":7414014574752,"title":"uxcell G3\/4\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 2-45L\/min SEN-HZ43WB","handle":"uxcell-g3-4-hall-effect-liquid-water-flow-sensor-switch-flowmeter-counter-meter-dc-5v-2-45l-min-sen-hz43wb","description":"\u003ch3\u003euxcell G3\/4\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 2-45L\/min SEN-HZ43WB\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1. The Water Flow Sensor is light, nimble outline, small size and easy to\ninstall. All materials are in line with SGS testing standards.2. There is an\nintegrated hall effect sensor that outputs an electrical pulse with every\nrevolution. The hall effect sensor is sealed from the water pipe and allows\nthe sensor to stay safe and dry.3. Stable, high temperature, low water\npressure start.4. Can use for Water heaters, credit card machines, water\nvending machine, flow measurement device.5. Three wire connection: Red for\npositive, black for negative, yellow for pulse signal. Specifications:Product\nName: Water Flow SensorMaterial: Brass(Shell)Liquid Temperature: Not More Than\n60CExternal Thread Diameter: G3\/4Flow Range: 2-45L\/minWorking Voltage Range:\nDC5VMax Current: 10mAMaximum Water Pressure: 1.75MPaConnector: Male SM-3PCable\nLength: 35cmSize: 60mm x 30mm x 31mm(LWH)Ingress Protection Rating:\nIP65Color: Brass ToneNet Weight: 152g Package Included:1 x Water Flow Sensor\nNote: 1. Installed in accordance with flow direction in the product, otherwise\nthere is no signal output.2. A filter screen must be installed at the inlet of\nthe sensor, in order to avoid particles and debris entering the sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStable, high temperature, low water pressure start.\u003c\/li\u003e\n \u003cli\u003eBrass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.\u003c\/li\u003e\n \u003cli\u003eThe water flow sensor is applied for water heater, and can be used as flow switch.\u003c\/li\u003e\n \u003cli\u003eAll materials are in line with SGS testing standards.\u003c\/li\u003e\n \u003cli\u003eFlow Range: 2-45L\/min; Maximum Water Pressure: 1.75MPa\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-14T14:33:36+10:00","created_at":"2022-06-14T14:33:40+10:00","vendor":"uxcell","type":"Flow Sensors","tags":["dingo"],"price":14900,"price_min":14900,"price_max":14900,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42194332156064,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07DLZH8P2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"uxcell G3\/4\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 2-45L\/min SEN-HZ43WB","public_title":null,"options":["Default Title"],"price":14900,"weight":204,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B07DLZH8P2.jpg?v=1655249779","\/\/dingoship.com.au\/cdn\/shop\/products\/61OfXVMjsAL.jpg?v=1655181220","\/\/dingoship.com.au\/cdn\/shop\/products\/71tsHSrOrCL.jpg?v=1655181220","\/\/dingoship.com.au\/cdn\/shop\/products\/61K6plmEMgL.jpg?v=1655181220","\/\/dingoship.com.au\/cdn\/shop\/products\/61NRgl5eT0L.jpg?v=1655181220"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07DLZH8P2.jpg?v=1655249779","options":["Title"],"media":[{"alt":null,"id":24860215148704,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07DLZH8P2.jpg?v=1655249779"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B07DLZH8P2.jpg?v=1655249779","width":1100},{"alt":null,"id":24853854486688,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61OfXVMjsAL.jpg?v=1655181220"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61OfXVMjsAL.jpg?v=1655181220","width":1100},{"alt":null,"id":24853854519456,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71tsHSrOrCL.jpg?v=1655181220"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71tsHSrOrCL.jpg?v=1655181220","width":1100},{"alt":null,"id":24853854552224,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61K6plmEMgL.jpg?v=1655181220"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61K6plmEMgL.jpg?v=1655181220","width":1100},{"alt":null,"id":24853854584992,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1100,"width":1100,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61NRgl5eT0L.jpg?v=1655181220"},"aspect_ratio":1.0,"height":1100,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61NRgl5eT0L.jpg?v=1655181220","width":1100}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003euxcell G3\/4\" Hall Effect Liquid Water Flow Sensor Switch Flowmeter Counter Meter DC 5V 2-45L\/min SEN-HZ43WB\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1. The Water Flow Sensor is light, nimble outline, small size and easy to\ninstall. All materials are in line with SGS testing standards.2. There is an\nintegrated hall effect sensor that outputs an electrical pulse with every\nrevolution. The hall effect sensor is sealed from the water pipe and allows\nthe sensor to stay safe and dry.3. Stable, high temperature, low water\npressure start.4. Can use for Water heaters, credit card machines, water\nvending machine, flow measurement device.5. Three wire connection: Red for\npositive, black for negative, yellow for pulse signal. Specifications:Product\nName: Water Flow SensorMaterial: Brass(Shell)Liquid Temperature: Not More Than\n60CExternal Thread Diameter: G3\/4Flow Range: 2-45L\/minWorking Voltage Range:\nDC5VMax Current: 10mAMaximum Water Pressure: 1.75MPaConnector: Male SM-3PCable\nLength: 35cmSize: 60mm x 30mm x 31mm(LWH)Ingress Protection Rating:\nIP65Color: Brass ToneNet Weight: 152g Package Included:1 x Water Flow Sensor\nNote: 1. Installed in accordance with flow direction in the product, otherwise\nthere is no signal output.2. A filter screen must be installed at the inlet of\nthe sensor, in order to avoid particles and debris entering the sensor.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStable, high temperature, low water pressure start.\u003c\/li\u003e\n \u003cli\u003eBrass material, small size, easy to install.Hall element is imported, water-proof design to prevent water ingress,The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant.\u003c\/li\u003e\n \u003cli\u003eThe water flow sensor is applied for water heater, and can be used as flow switch.\u003c\/li\u003e\n \u003cli\u003eAll materials are in line with SGS testing standards.\u003c\/li\u003e\n \u003cli\u003eFlow Range: 2-45L\/min; Maximum Water Pressure: 1.75MPa\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
