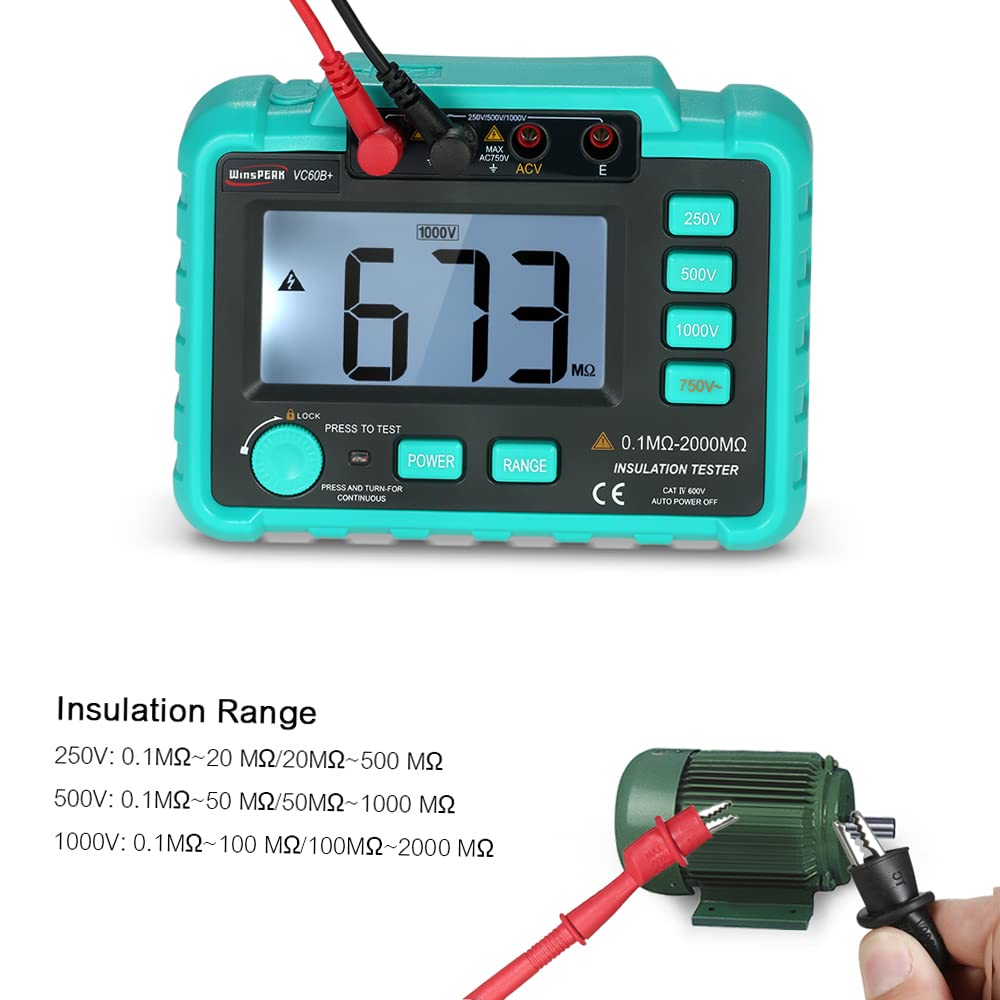

{"id":12792120115360,"title":"VISLONE VC60B+ LCD Digital Insulation Resistance Tester Megohm Meter Megohmmeter DC250V\/500V\/1000V AC750V","handle":"vislone-vc60b-lcd-digital-insulation-resistance-tester-megohm-meter-megohmmeter-dc250v-500v-1000v-ac750v","description":"\u003ch3\u003eVISLONE VC60B+ LCD Digital Insulation Resistance Tester Megohm Meter Megohmmeter DC250V\/500V\/1000V AC750V\u003c\/h3\u003e \u003cp id=\"b\"\u003eThis instrument adopts high ratio inductance low-loss energy enrichment DC voltage converter to convert 12V into DC 250V\/500V \/ 1000V to change. It uses digital LCR Bridge for resistance measurement and insulation resistance test. It has many advantages: light weight, wide measuring range, backlight, test lock, automatic shutdown and other functions. It can also be used for measuring electricity with advanced appearance and stable performance. Specifications: Material: ABS Output voltage: DC250V\/500V\/1000V, ±10% Isolation range: 250V: 0.1MΩ ~ 20MΩ \/ 20MΩ ~ 500MΩ; 500V: 0.1MΩ ~ 50MΩ \/ 50MΩ ~ 1000MΩ; 1000V: 0.1MΩ ~ 100MΩ \/ 100MΩ ~ 2000MΩ Accuracy: ± (4% reading + 2 digits) Short circuit current: \u0026lt;1.6mA Median resistance: 250V \/ 500V: 2MΩ; 1000V: 5MΩ Terminal position: L \u0026amp; E Voltage test: AC750V; Accuracy: ± (1% reading + 6 digits) Input impedance: 1MΩ Frequency response: (50 ~ 200) Hz End position: ACV \u0026amp; G Display: 90 48mm Backlit LCD Max Display: \"1999\" Range Display: \"1\" Measurement Method: A\/D Conversion Sampling Rate: 3 times\/second Operating Temperature: 0~40°C Operating Humidity: 30%~85%RH Power Supply: 8 1.5V LR6 batteries (not included); or DC 12V power adapter (NOT included) Product Size: 170 120 60mm \/ 6.7 4.7 2.36in Product Weight: 528g \/ 18.65oz Package Size: 20 16.5 7cm \/ 7.87 6.5 2.76in Package Weight: 730g \/ 25.77oz Package List: 1 Insulation Resistance Tester 1 pair of 10A test leads 2 alligator clips 1 user manual (English)\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eWide measuring range: up to 2000M 1000V with an accuracy of (4% of Measured value + 2 digits).\u003c\/li\u003e \u003cli\u003eLarge LCD display (90 * 48mm), with backlight, max. display \"1999\".\u003c\/li\u003e \u003cli\u003eData hold and auto power-off Function.\u003c\/li\u003e \u003cli\u003eLow power consumption: less than 300 mW when idle measurement.\u003c\/li\u003e \u003cli\u003eApplied in insulation resistance testing of motors, cables, electrical appliances, telecommunications equipment, etc.\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-03-25T19:30:18+11:00","created_at":"2024-03-25T19:30:28+11:00","vendor":"VISLONE","type":"Resistance measuring devices","tags":["industryDE"],"price":35300,"price_min":35300,"price_max":35300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":49185115046048,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09WTLVS1M","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"VISLONE VC60B+ LCD Digital Insulation Resistance Tester Megohm Meter Megohmmeter DC250V\/500V\/1000V AC750V","public_title":null,"options":["Default Title"],"price":35300,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09WTLVS1M.jpg?v=1711411224","\/\/dingoship.com.au\/cdn\/shop\/files\/61gVC8vousL.jpg?v=1711355428","\/\/dingoship.com.au\/cdn\/shop\/files\/61uZTN9bsAL.jpg?v=1711355428","\/\/dingoship.com.au\/cdn\/shop\/files\/61B0KJNdwfL.jpg?v=1711355428","\/\/dingoship.com.au\/cdn\/shop\/files\/51Q9GrpeGXL.jpg?v=1711355428","\/\/dingoship.com.au\/cdn\/shop\/files\/51ZebeB2NjL.jpg?v=1711355428","\/\/dingoship.com.au\/cdn\/shop\/files\/61YcLCkLtlL.jpg?v=1711355428"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09WTLVS1M.jpg?v=1711411224","options":["Title"],"media":[{"alt":null,"id":32960159056032,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09WTLVS1M.jpg?v=1711411224"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09WTLVS1M.jpg?v=1711411224","width":1601},{"alt":null,"id":32949914861728,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61gVC8vousL.jpg?v=1711355428"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61gVC8vousL.jpg?v=1711355428","width":1000},{"alt":null,"id":32949914894496,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61uZTN9bsAL.jpg?v=1711355428"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61uZTN9bsAL.jpg?v=1711355428","width":1000},{"alt":null,"id":32949914927264,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61B0KJNdwfL.jpg?v=1711355428"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61B0KJNdwfL.jpg?v=1711355428","width":1000},{"alt":null,"id":32949914960032,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51Q9GrpeGXL.jpg?v=1711355428"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51Q9GrpeGXL.jpg?v=1711355428","width":1000},{"alt":null,"id":32949914992800,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51ZebeB2NjL.jpg?v=1711355428"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/51ZebeB2NjL.jpg?v=1711355428","width":1000},{"alt":null,"id":32949915025568,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61YcLCkLtlL.jpg?v=1711355428"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61YcLCkLtlL.jpg?v=1711355428","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eVISLONE VC60B+ LCD Digital Insulation Resistance Tester Megohm Meter Megohmmeter DC250V\/500V\/1000V AC750V\u003c\/h3\u003e \u003cp id=\"b\"\u003eThis instrument adopts high ratio inductance low-loss energy enrichment DC voltage converter to convert 12V into DC 250V\/500V \/ 1000V to change. It uses digital LCR Bridge for resistance measurement and insulation resistance test. It has many advantages: light weight, wide measuring range, backlight, test lock, automatic shutdown and other functions. It can also be used for measuring electricity with advanced appearance and stable performance. Specifications: Material: ABS Output voltage: DC250V\/500V\/1000V, ±10% Isolation range: 250V: 0.1MΩ ~ 20MΩ \/ 20MΩ ~ 500MΩ; 500V: 0.1MΩ ~ 50MΩ \/ 50MΩ ~ 1000MΩ; 1000V: 0.1MΩ ~ 100MΩ \/ 100MΩ ~ 2000MΩ Accuracy: ± (4% reading + 2 digits) Short circuit current: \u0026lt;1.6mA Median resistance: 250V \/ 500V: 2MΩ; 1000V: 5MΩ Terminal position: L \u0026amp; E Voltage test: AC750V; Accuracy: ± (1% reading + 6 digits) Input impedance: 1MΩ Frequency response: (50 ~ 200) Hz End position: ACV \u0026amp; G Display: 90 48mm Backlit LCD Max Display: \"1999\" Range Display: \"1\" Measurement Method: A\/D Conversion Sampling Rate: 3 times\/second Operating Temperature: 0~40°C Operating Humidity: 30%~85%RH Power Supply: 8 1.5V LR6 batteries (not included); or DC 12V power adapter (NOT included) Product Size: 170 120 60mm \/ 6.7 4.7 2.36in Product Weight: 528g \/ 18.65oz Package Size: 20 16.5 7cm \/ 7.87 6.5 2.76in Package Weight: 730g \/ 25.77oz Package List: 1 Insulation Resistance Tester 1 pair of 10A test leads 2 alligator clips 1 user manual (English)\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eWide measuring range: up to 2000M 1000V with an accuracy of (4% of Measured value + 2 digits).\u003c\/li\u003e \u003cli\u003eLarge LCD display (90 * 48mm), with backlight, max. display \"1999\".\u003c\/li\u003e \u003cli\u003eData hold and auto power-off Function.\u003c\/li\u003e \u003cli\u003eLow power consumption: less than 300 mW when idle measurement.\u003c\/li\u003e \u003cli\u003eApplied in insulation resistance testing of motors, cables, electrical appliances, telecommunications equipment, etc.\u003c\/li\u003e \u003c\/ul\u003e"}
