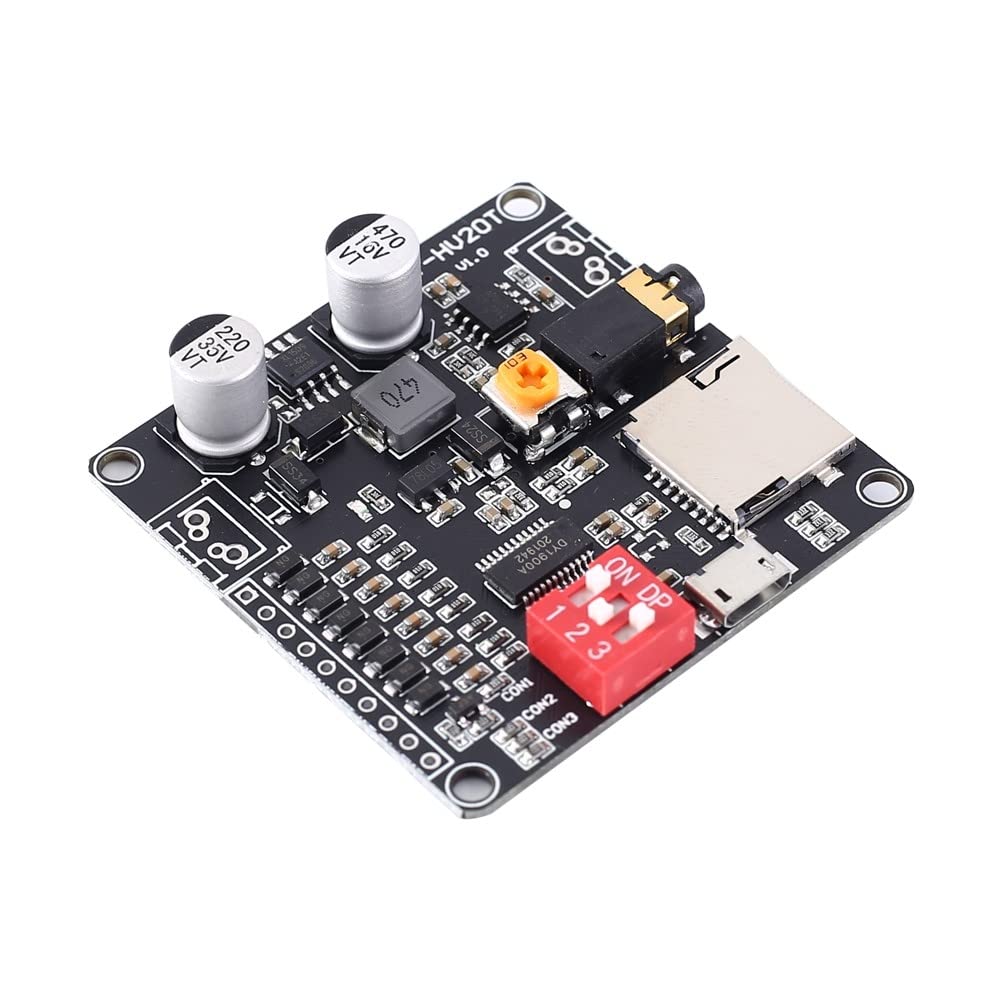

{"id":12648220262560,"title":"Voice Playback Module, Digital Amplifier Module TF Card Slot Mono 20W 8 Ohm MP3 WAV UART Controller for Microcontroller","handle":"voice-playback-module-digital-amplifier-module-tf-card-slot-mono-20w-8-ohm-mp3-wav-uart-controller-for-microcontroller","description":"\u003ch3\u003eVoice Playback Module, Digital Amplifier Module TF Card Slot Mono 20W 8 Ohm MP3 WAV UART Controller for Microcontroller\u003c\/h3\u003e \u003cp id=\"b\"\u003eFeatures: 1\u0026gt;.Support MP3 and WAV decoding format. 2. Supported sampling frequency (KHz): 8\/11.025\/12\/16\/22.05\/24\/32\/44.1\/48. 3\u0026gt; .24-bit DAC output, dynamic range support 90dB, SNR support 85dB. 4. Support FAT16\/FAT32 file system with maximum 32Gbit (4MB) TF card and 32Gbit (4MB) U disk. 5. Support UART serial port voice transmission function. It can control play, pause, selection, volume and other functions, the largest selection of 65535 songs. The baud rate is 9600bit\/s. 6. Support I\/O trigger function, 8-bit I\/O ports can trigger 8 songs or 8 I\/O combinations to trigger 255 songs. 7\u0026gt;.Support One_line Single Bus Serial Port Control, which can control play, pause, select, volume up and down and other functions. 8\u0026gt;.Supports 3 configuration I\/O for mode selection to create 7 working modes. 9. Built-in 20W Class D amplifier circuit and can directly drive 4 ohm\/20W 8 ohm\/10W speakers. Parameters: 1. Product name: DY-HV20T voice playback module 2. Product number: DY- HV20T 3. Working voltage: DC 6V-35V 4. Working temperature range: -20℃ ~ 85℃ 5\u0026gt; .Working humidity range: 0% -95% RH 6. Size: 50 50 12 mmPackage List: 1X DY-HV20T Voice Playback Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eDY-HV20T is an intelligent voice module. It integrates I\/O subsection triggering, UART serial port control, ONE_line single bus serial port control. Built-in 20W Class D amplifier circuit and can drive 4ohm\/20w, 8ohm\/10w speakers directly.\u003c\/li\u003e \u003cli\u003eIt supports MP3, WAV decoding format . Max support 32Gbit (4MByte) TF card storage, can connect the computer to upgrade the TF card to save audio files via USB cable. 3.5mm audio interface, U disk interface, micro USB download interface, button module in one module\u003c\/li\u003e \u003cli\u003eSupports MP3 and WAV decoding format.\u003c\/li\u003e \u003cli\u003eSupports UART serial port control voice broadcast function. It can play, pause, select, increase and decrease volume and other functions, the wide selection of 65535 songs. The baud rate is 9600 bit\/s.\u003c\/li\u003e \u003cli\u003eSHOP WITH CONFIDENCE: In order to provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2024-03-08T03:53:20+11:00","created_at":"2024-03-08T03:53:29+11:00","vendor":"DONGKER","type":"Microcontroller","tags":["industryDE"],"price":16200,"price_min":16200,"price_max":16200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48984012849312,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09SHJXF6H","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Voice Playback Module, Digital Amplifier Module TF Card Slot Mono 20W 8 Ohm MP3 WAV UART Controller for Microcontroller","public_title":null,"options":["Default Title"],"price":16200,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"774590123912","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09SHJXF6H.jpg?v=1709854815","\/\/dingoship.com.au\/cdn\/shop\/products\/71LOfO8EcZL_79883f98-0b53-4a4a-b0d4-ede19392de8e.jpg?v=1709830409","\/\/dingoship.com.au\/cdn\/shop\/products\/61I4wXlHBSL_d6ac2b72-5166-47a3-9886-c8e5431aeabf.jpg?v=1709830409","\/\/dingoship.com.au\/cdn\/shop\/products\/617zsSEFavL.jpg?v=1709830409","\/\/dingoship.com.au\/cdn\/shop\/products\/61p64gq3_xL_1aa54deb-681d-4e7b-83bc-d7b91070f7d5.jpg?v=1709830409","\/\/dingoship.com.au\/cdn\/shop\/products\/61uDGasmfCL.jpg?v=1709830409","\/\/dingoship.com.au\/cdn\/shop\/products\/51KO0MrYxPL.jpg?v=1709830409"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09SHJXF6H.jpg?v=1709854815","options":["Title"],"media":[{"alt":null,"id":32698007060640,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09SHJXF6H.jpg?v=1709854815"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B09SHJXF6H.jpg?v=1709854815","width":1000},{"alt":null,"id":32694154166432,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71LOfO8EcZL_79883f98-0b53-4a4a-b0d4-ede19392de8e.jpg?v=1709830409"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/71LOfO8EcZL_79883f98-0b53-4a4a-b0d4-ede19392de8e.jpg?v=1709830409","width":1000},{"alt":null,"id":32694154199200,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61I4wXlHBSL_d6ac2b72-5166-47a3-9886-c8e5431aeabf.jpg?v=1709830409"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61I4wXlHBSL_d6ac2b72-5166-47a3-9886-c8e5431aeabf.jpg?v=1709830409","width":1000},{"alt":null,"id":32694154231968,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/617zsSEFavL.jpg?v=1709830409"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/617zsSEFavL.jpg?v=1709830409","width":1000},{"alt":null,"id":32694154264736,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61p64gq3_xL_1aa54deb-681d-4e7b-83bc-d7b91070f7d5.jpg?v=1709830409"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61p64gq3_xL_1aa54deb-681d-4e7b-83bc-d7b91070f7d5.jpg?v=1709830409","width":1000},{"alt":null,"id":32694154297504,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61uDGasmfCL.jpg?v=1709830409"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61uDGasmfCL.jpg?v=1709830409","width":1000},{"alt":null,"id":32694154330272,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51KO0MrYxPL.jpg?v=1709830409"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51KO0MrYxPL.jpg?v=1709830409","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eVoice Playback Module, Digital Amplifier Module TF Card Slot Mono 20W 8 Ohm MP3 WAV UART Controller for Microcontroller\u003c\/h3\u003e \u003cp id=\"b\"\u003eFeatures: 1\u0026gt;.Support MP3 and WAV decoding format. 2. Supported sampling frequency (KHz): 8\/11.025\/12\/16\/22.05\/24\/32\/44.1\/48. 3\u0026gt; .24-bit DAC output, dynamic range support 90dB, SNR support 85dB. 4. Support FAT16\/FAT32 file system with maximum 32Gbit (4MB) TF card and 32Gbit (4MB) U disk. 5. Support UART serial port voice transmission function. It can control play, pause, selection, volume and other functions, the largest selection of 65535 songs. The baud rate is 9600bit\/s. 6. Support I\/O trigger function, 8-bit I\/O ports can trigger 8 songs or 8 I\/O combinations to trigger 255 songs. 7\u0026gt;.Support One_line Single Bus Serial Port Control, which can control play, pause, select, volume up and down and other functions. 8\u0026gt;.Supports 3 configuration I\/O for mode selection to create 7 working modes. 9. Built-in 20W Class D amplifier circuit and can directly drive 4 ohm\/20W 8 ohm\/10W speakers. Parameters: 1. Product name: DY-HV20T voice playback module 2. Product number: DY- HV20T 3. Working voltage: DC 6V-35V 4. Working temperature range: -20℃ ~ 85℃ 5\u0026gt; .Working humidity range: 0% -95% RH 6. Size: 50 50 12 mmPackage List: 1X DY-HV20T Voice Playback Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eDY-HV20T is an intelligent voice module. It integrates I\/O subsection triggering, UART serial port control, ONE_line single bus serial port control. Built-in 20W Class D amplifier circuit and can drive 4ohm\/20w, 8ohm\/10w speakers directly.\u003c\/li\u003e \u003cli\u003eIt supports MP3, WAV decoding format . Max support 32Gbit (4MByte) TF card storage, can connect the computer to upgrade the TF card to save audio files via USB cable. 3.5mm audio interface, U disk interface, micro USB download interface, button module in one module\u003c\/li\u003e \u003cli\u003eSupports MP3 and WAV decoding format.\u003c\/li\u003e \u003cli\u003eSupports UART serial port control voice broadcast function. It can play, pause, select, increase and decrease volume and other functions, the wide selection of 65535 songs. The baud rate is 9600 bit\/s.\u003c\/li\u003e \u003cli\u003eSHOP WITH CONFIDENCE: In order to provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.\u003c\/li\u003e\n\u003c\/ul\u003e"}
