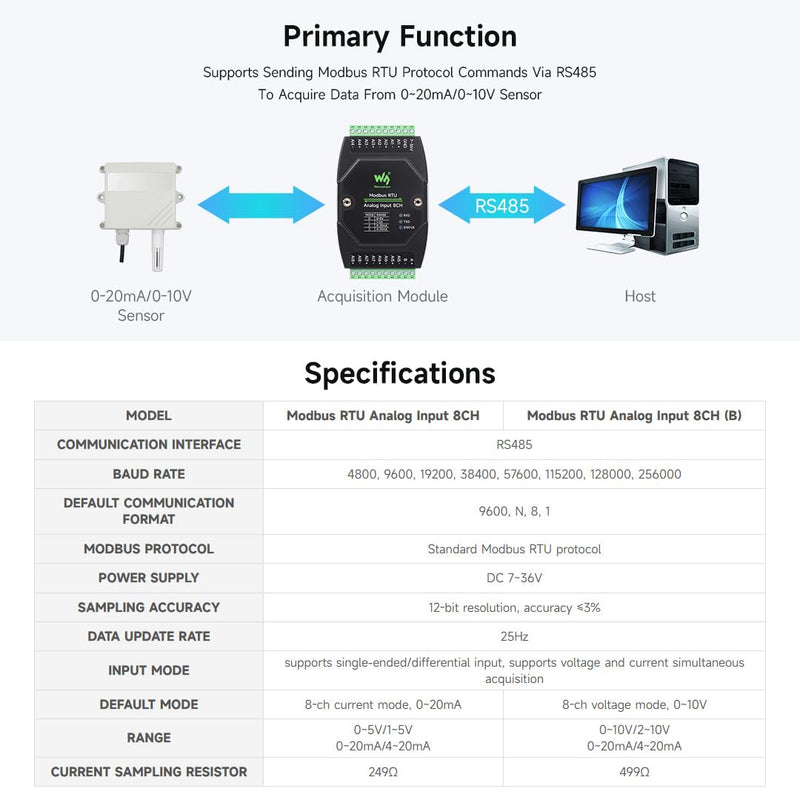

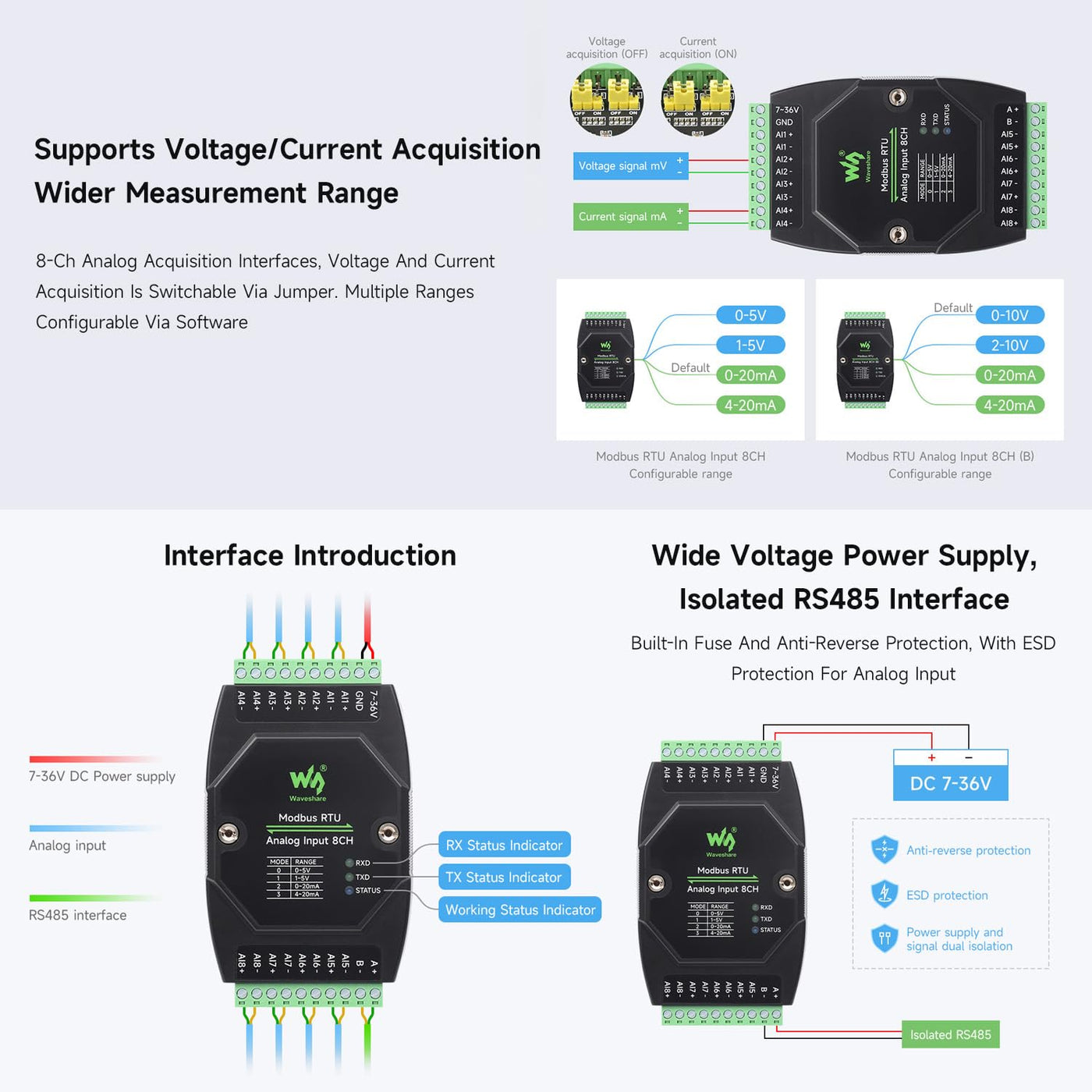

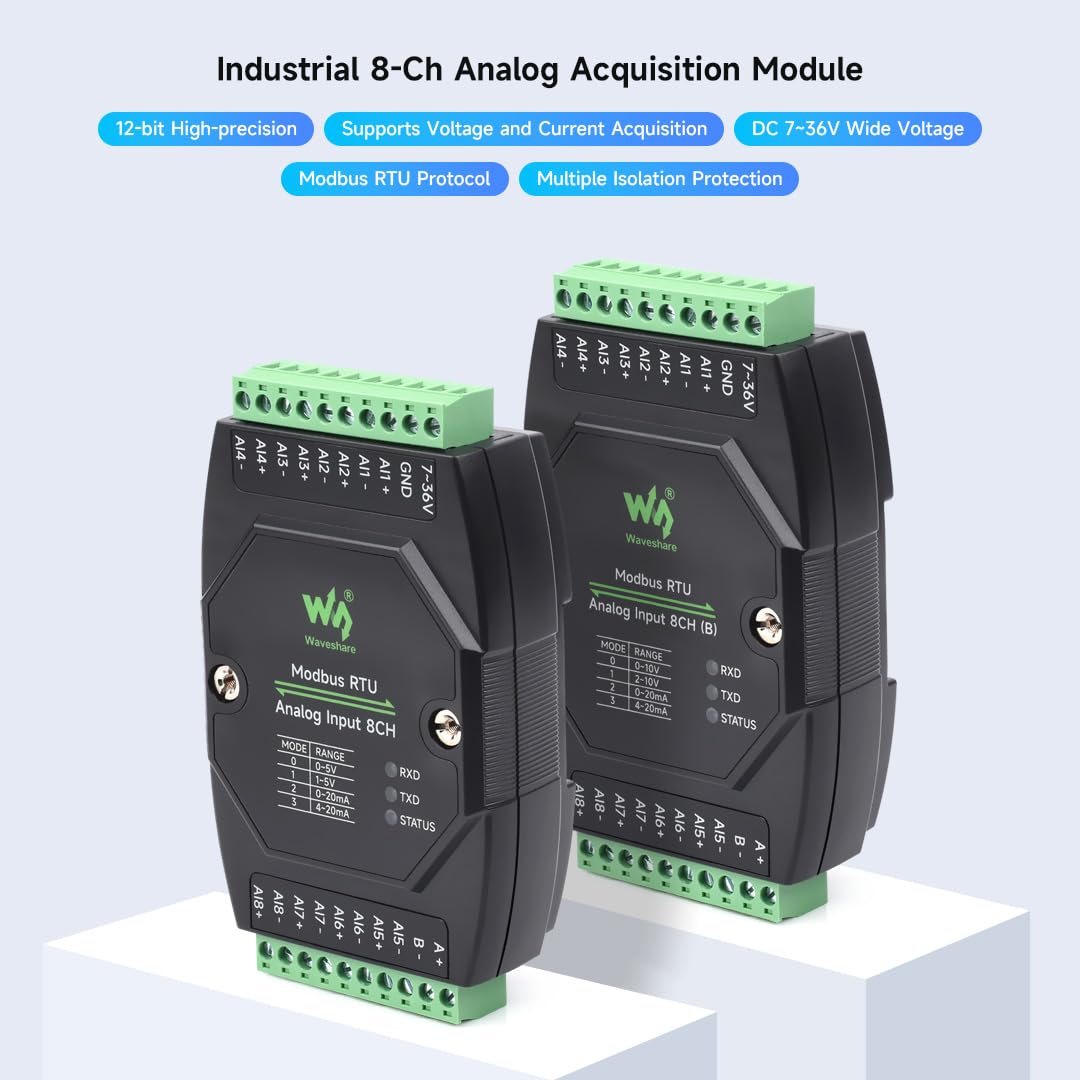

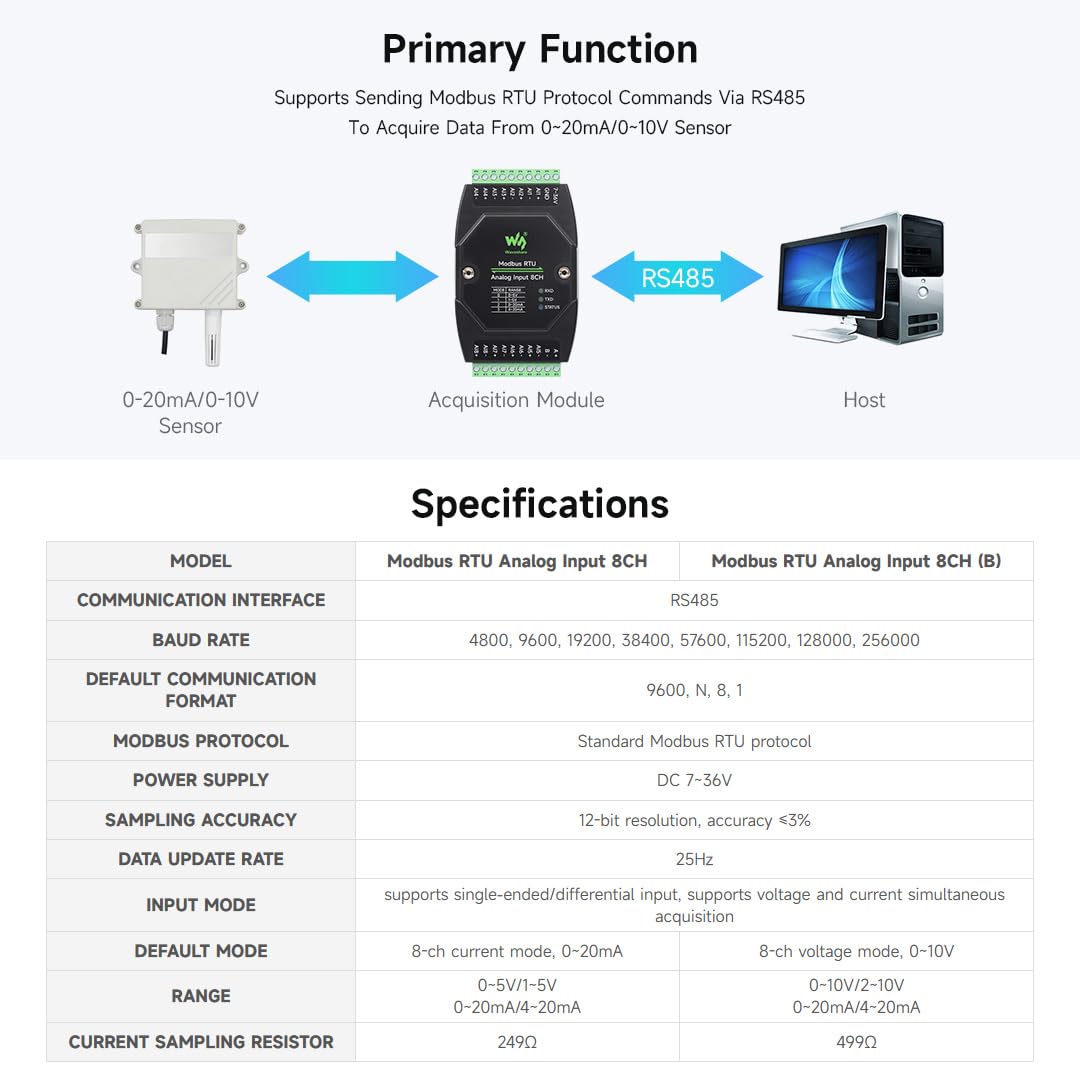

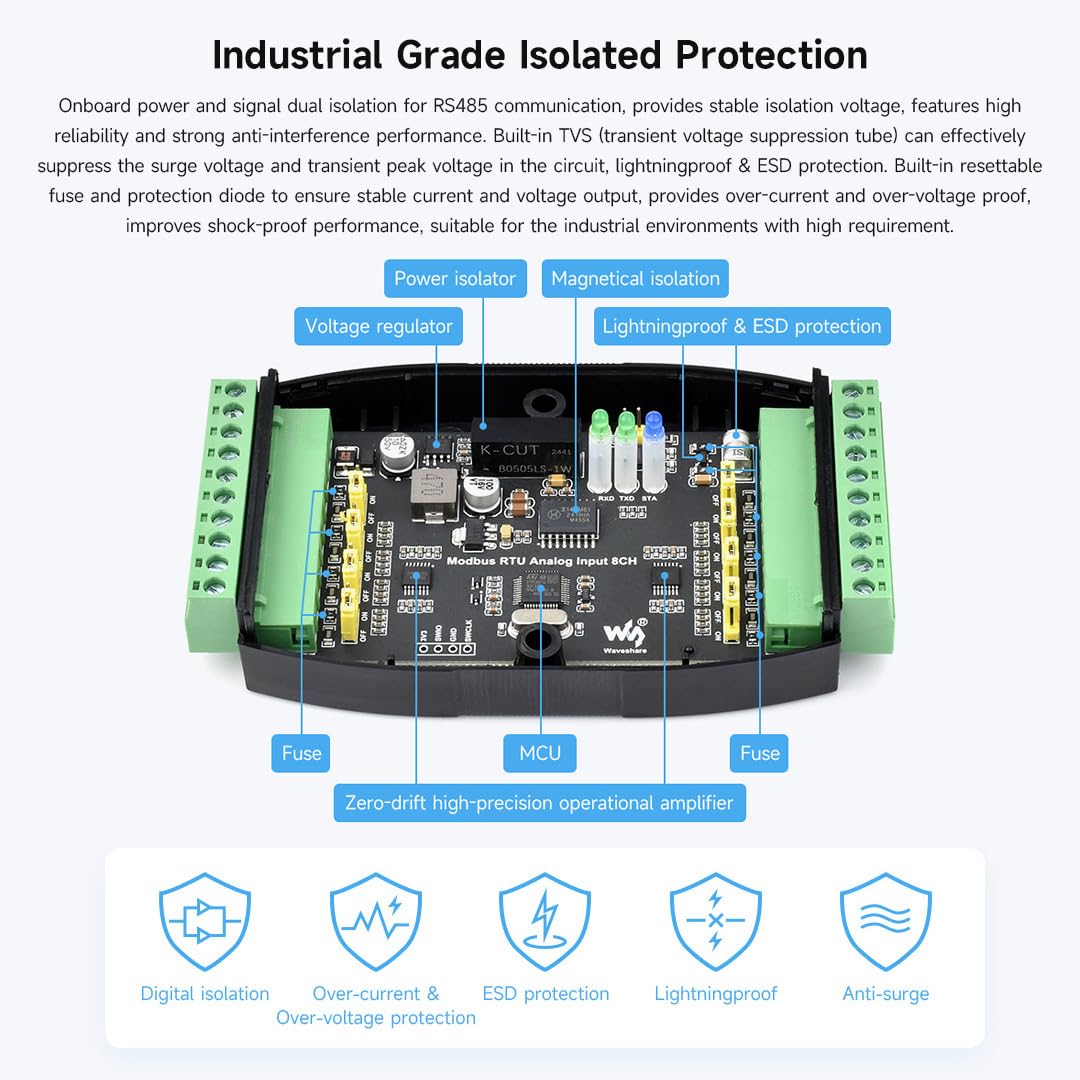

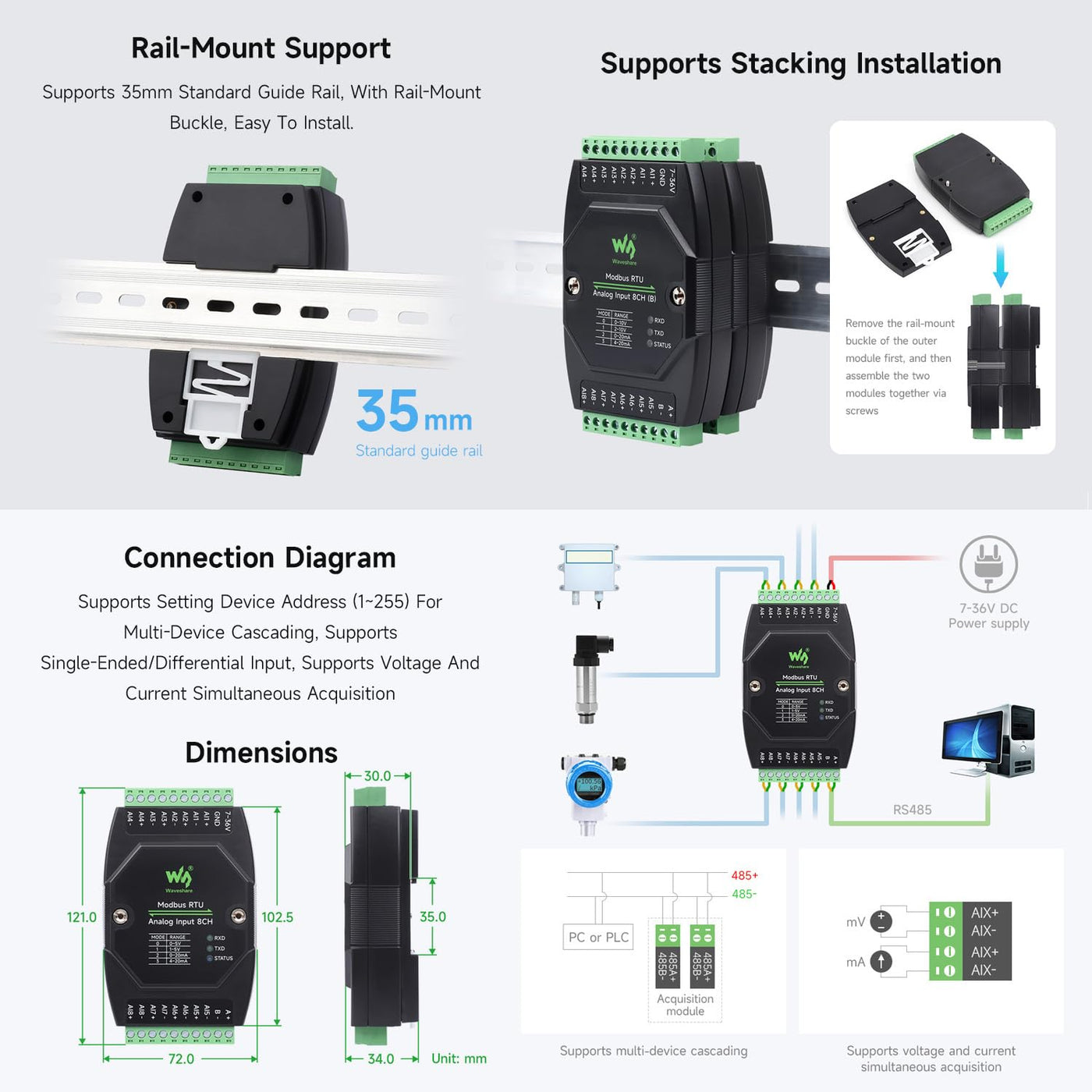

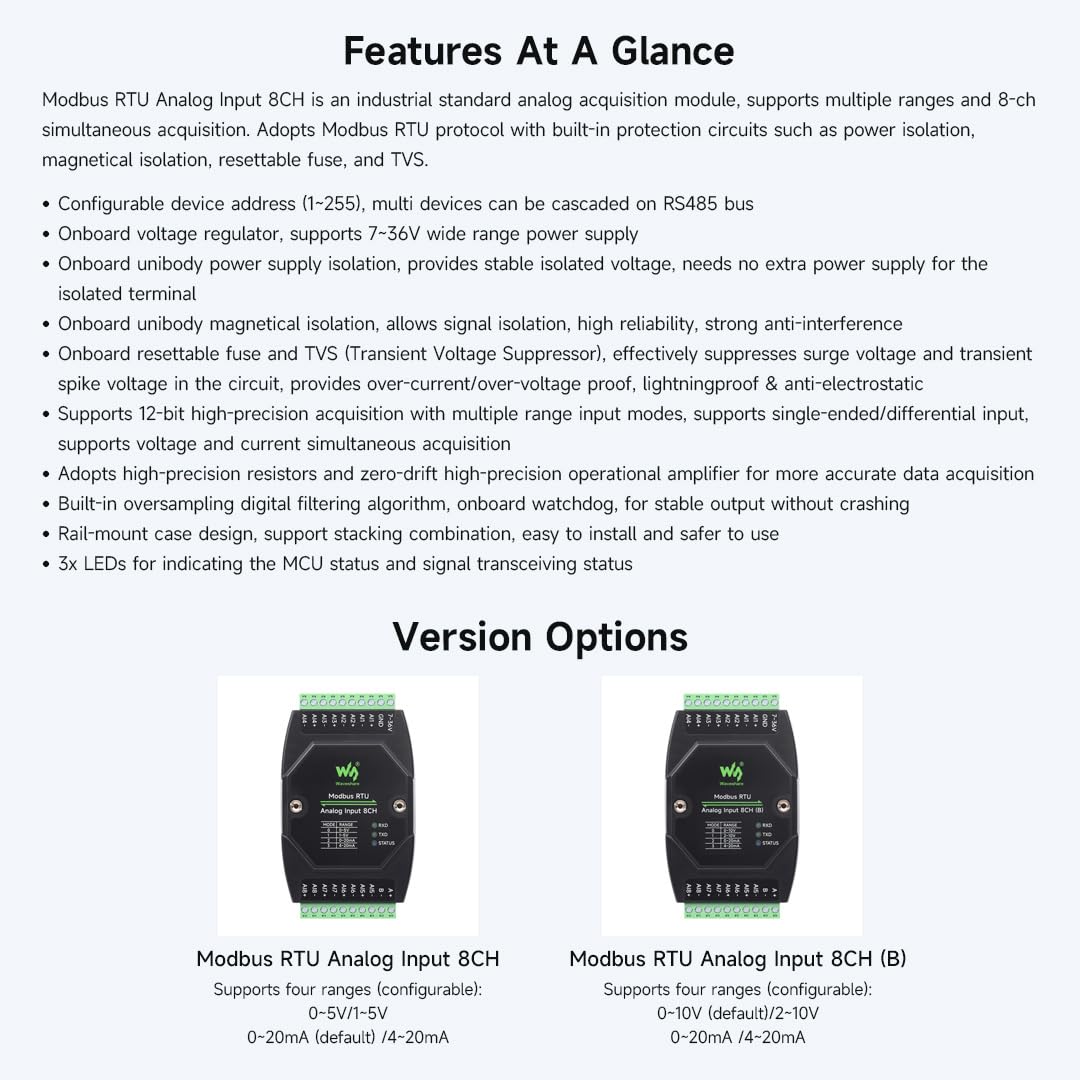

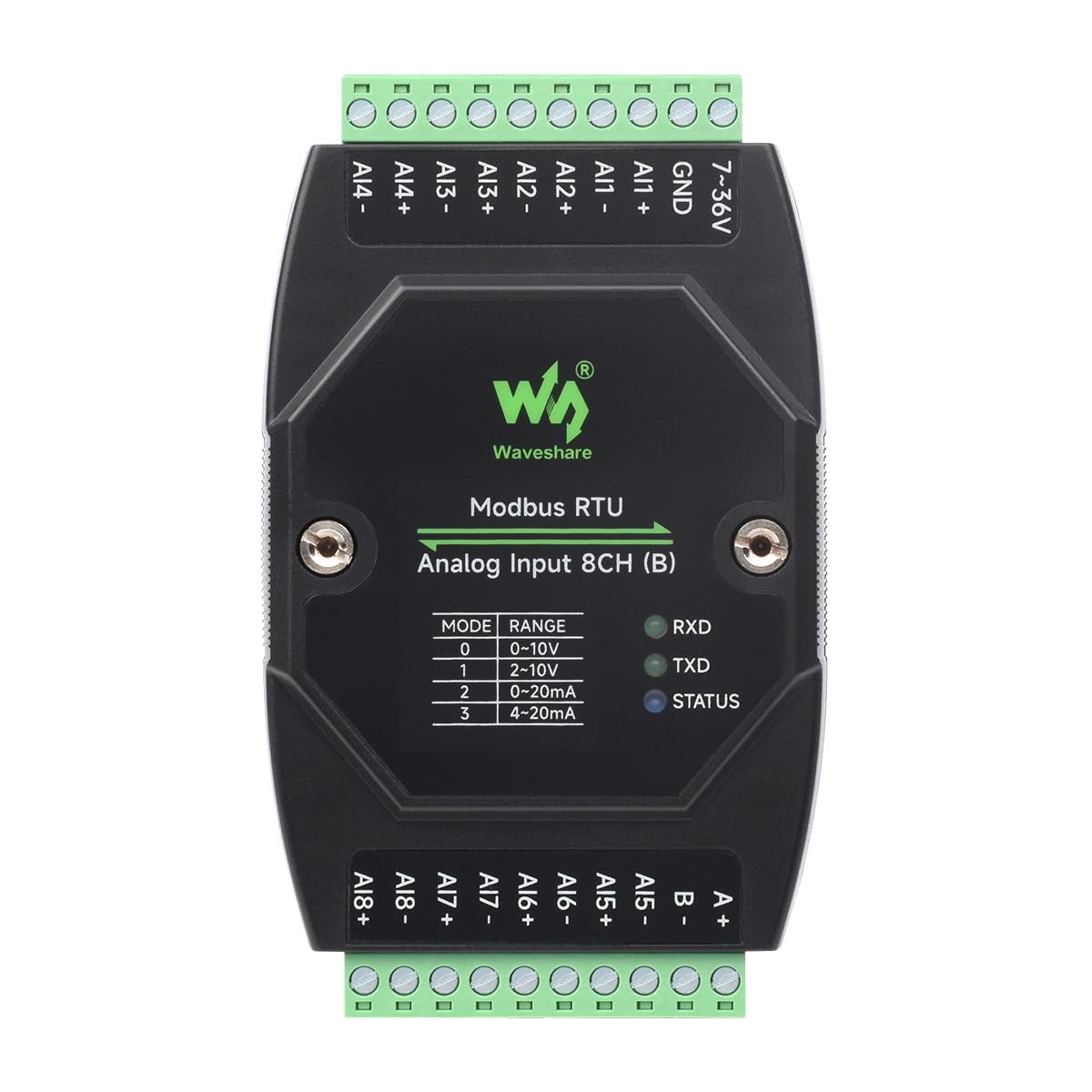

{"id":15859739426976,"title":"Waveshare Industrial 8-Ch Analog Acquisition Module, 12-Bit High-Precision, Supports Voltage and Current Acquisition, DC 7~36V Wide Voltage Power Supply, 8-ch Voltage Mode, 0~10V","handle":"waveshare-industrial-8-ch-analog-acquisition-module-12-bit-high-precision-supports-voltage-and-current-acquisition-dc-7-36v-wide-voltage-power-supply-8-ch-voltage-mode-0-10v","description":"\u003ch3\u003eWaveshare Industrial 8-Ch Analog Acquisition Module, 12-Bit High-Precision, Supports Voltage and Current Acquisition, DC 7~36V Wide Voltage Power Supply, 8-ch Voltage Mode, 0~10V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e8-ch voltage mode, 0 ~ 10 V\u003c\/li\u003e\n \u003cli\u003eConfigurable device address (1~255), multi devices can be cascaded on RS485 bus. bOnboard voltage regulator, supports 7~36V wide range power supply. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal\u003c\/li\u003e\n \u003cli\u003eOnboard unibody magnetic isolation, allows signal isolation, high reliability, strong anti-interference. Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current\/over-voltage proof, lightningproof \u0026amp; anti-electrostatic\u003c\/li\u003e\n \u003cli\u003eSupports 12-bit high-precision acquisition with multiple range input modes, supports single-ended\/differential input, supports voltage and current simultaneous acquisition. Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data acquisition\u003c\/li\u003e\n \u003cli\u003eBuilt-in oversampling digital filtering algorithm, onboard watchdog, for stable output without crashing. Rail-mount case design, support stacking combination, easy to install and safer to use. 3x LEDs for indicating the MCU status and signal transceiving status\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-07T15:39:32+10:00","created_at":"2026-09-07T09:57:29+10:00","vendor":"Waveshare","type":"IO Modules","tags":["industrial_DE_Aug2026"],"price":29000,"price_min":29000,"price_max":29000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":58816732004512,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0CLV59WGP","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Waveshare Industrial 8-Ch Analog Acquisition Module, 12-Bit High-Precision, Supports Voltage and Current Acquisition, DC 7~36V Wide Voltage Power Supply, 8-ch Voltage Mode, 0~10V","public_title":null,"options":["Default Title"],"price":29000,"weight":170,"compare_at_price":null,"inventory_management":"shopify","barcode":"Modbus RTU Analog Input 8CH (B)","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/B0CLV59WGP.jpg?v=1788739051","\/\/dingoship.com.au\/cdn\/shop\/files\/61apihtOu_L.jpg?v=1788739051","\/\/dingoship.com.au\/cdn\/shop\/files\/61WJXGIqCoL.jpg?v=1788739051","\/\/dingoship.com.au\/cdn\/shop\/files\/61piM1qJU6L.jpg?v=1788739051","\/\/dingoship.com.au\/cdn\/shop\/files\/61aBfaW3doL.jpg?v=1788739052","\/\/dingoship.com.au\/cdn\/shop\/files\/71s1nkDS7RL.jpg?v=1788739051","\/\/dingoship.com.au\/cdn\/shop\/files\/71jitJXfWhL.jpg?v=1788739051","\/\/dingoship.com.au\/cdn\/shop\/files\/71-d5BnS15L.jpg?v=1788739051"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0CLV59WGP.jpg?v=1788739051","options":["Title"],"media":[{"alt":null,"id":70256886513824,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0CLV59WGP.jpg?v=1788739051"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/B0CLV59WGP.jpg?v=1788739051","width":1200},{"alt":null,"id":70256886546592,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61apihtOu_L.jpg?v=1788739051"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61apihtOu_L.jpg?v=1788739051","width":1080},{"alt":null,"id":70256886579360,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61WJXGIqCoL.jpg?v=1788739051"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61WJXGIqCoL.jpg?v=1788739051","width":1080},{"alt":null,"id":70256886612128,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61piM1qJU6L.jpg?v=1788739051"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61piM1qJU6L.jpg?v=1788739051","width":1080},{"alt":null,"id":70256886644896,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61aBfaW3doL.jpg?v=1788739052"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61aBfaW3doL.jpg?v=1788739052","width":1080},{"alt":null,"id":70256886677664,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1080,"width":1080,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71s1nkDS7RL.jpg?v=1788739051"},"aspect_ratio":1.0,"height":1080,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71s1nkDS7RL.jpg?v=1788739051","width":1080},{"alt":null,"id":70256886710432,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71jitJXfWhL.jpg?v=1788739051"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71jitJXfWhL.jpg?v=1788739051","width":1500},{"alt":null,"id":70256886743200,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71-d5BnS15L.jpg?v=1788739051"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71-d5BnS15L.jpg?v=1788739051","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWaveshare Industrial 8-Ch Analog Acquisition Module, 12-Bit High-Precision, Supports Voltage and Current Acquisition, DC 7~36V Wide Voltage Power Supply, 8-ch Voltage Mode, 0~10V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e8-ch voltage mode, 0 ~ 10 V\u003c\/li\u003e\n \u003cli\u003eConfigurable device address (1~255), multi devices can be cascaded on RS485 bus. bOnboard voltage regulator, supports 7~36V wide range power supply. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal\u003c\/li\u003e\n \u003cli\u003eOnboard unibody magnetic isolation, allows signal isolation, high reliability, strong anti-interference. Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current\/over-voltage proof, lightningproof \u0026amp; anti-electrostatic\u003c\/li\u003e\n \u003cli\u003eSupports 12-bit high-precision acquisition with multiple range input modes, supports single-ended\/differential input, supports voltage and current simultaneous acquisition. Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data acquisition\u003c\/li\u003e\n \u003cli\u003eBuilt-in oversampling digital filtering algorithm, onboard watchdog, for stable output without crashing. Rail-mount case design, support stacking combination, easy to install and safer to use. 3x LEDs for indicating the MCU status and signal transceiving status\u003c\/li\u003e\n \u003c\/ul\u003e"}
