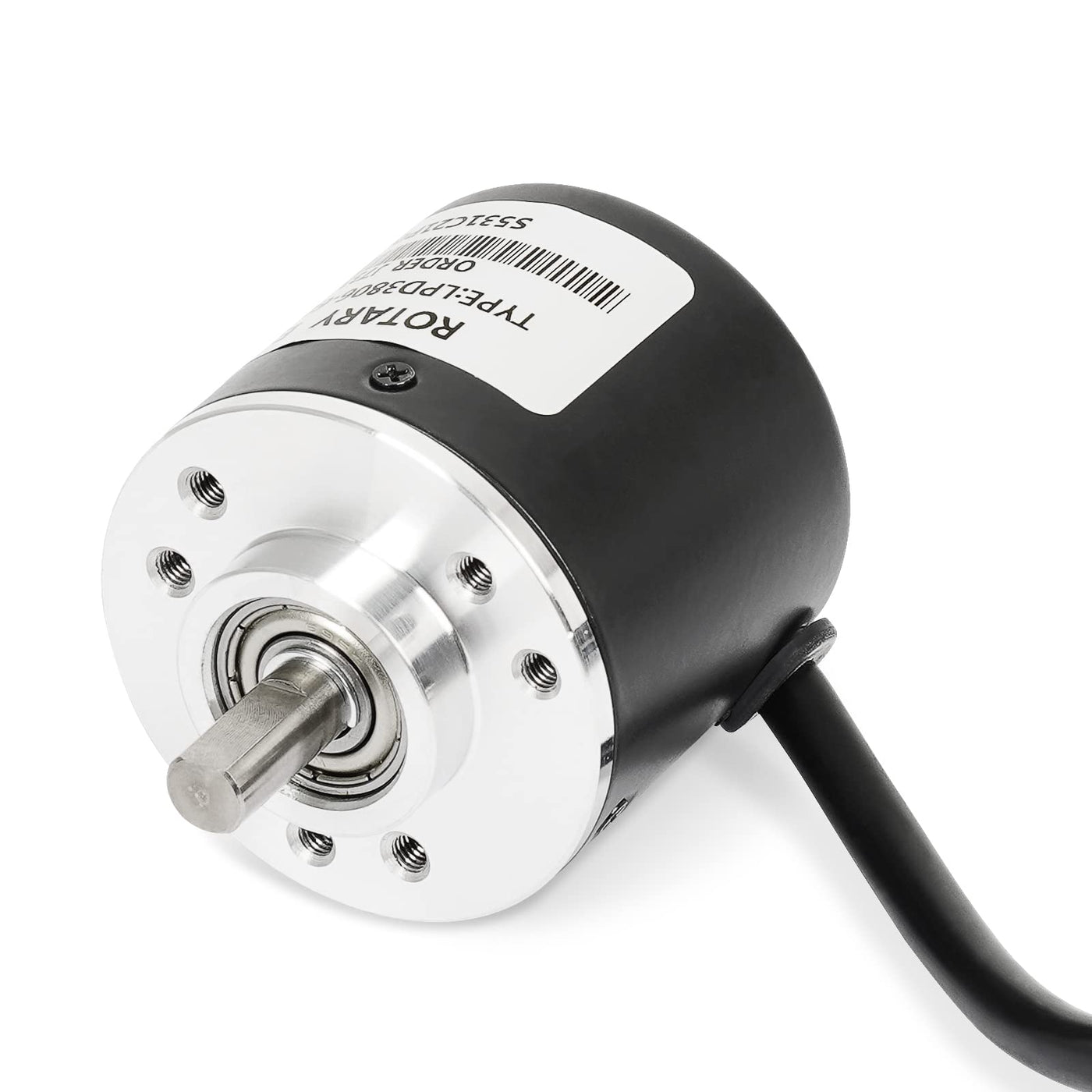

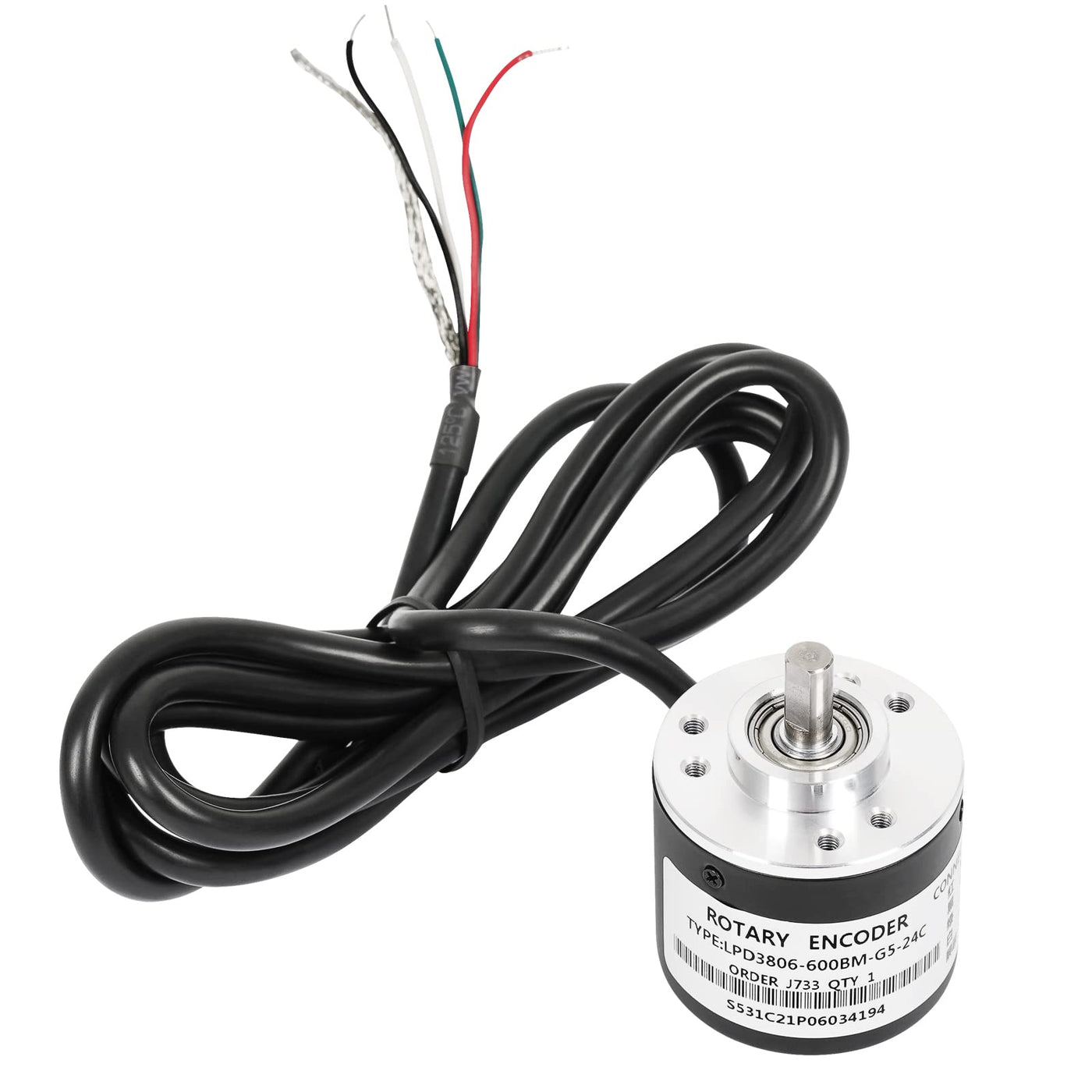

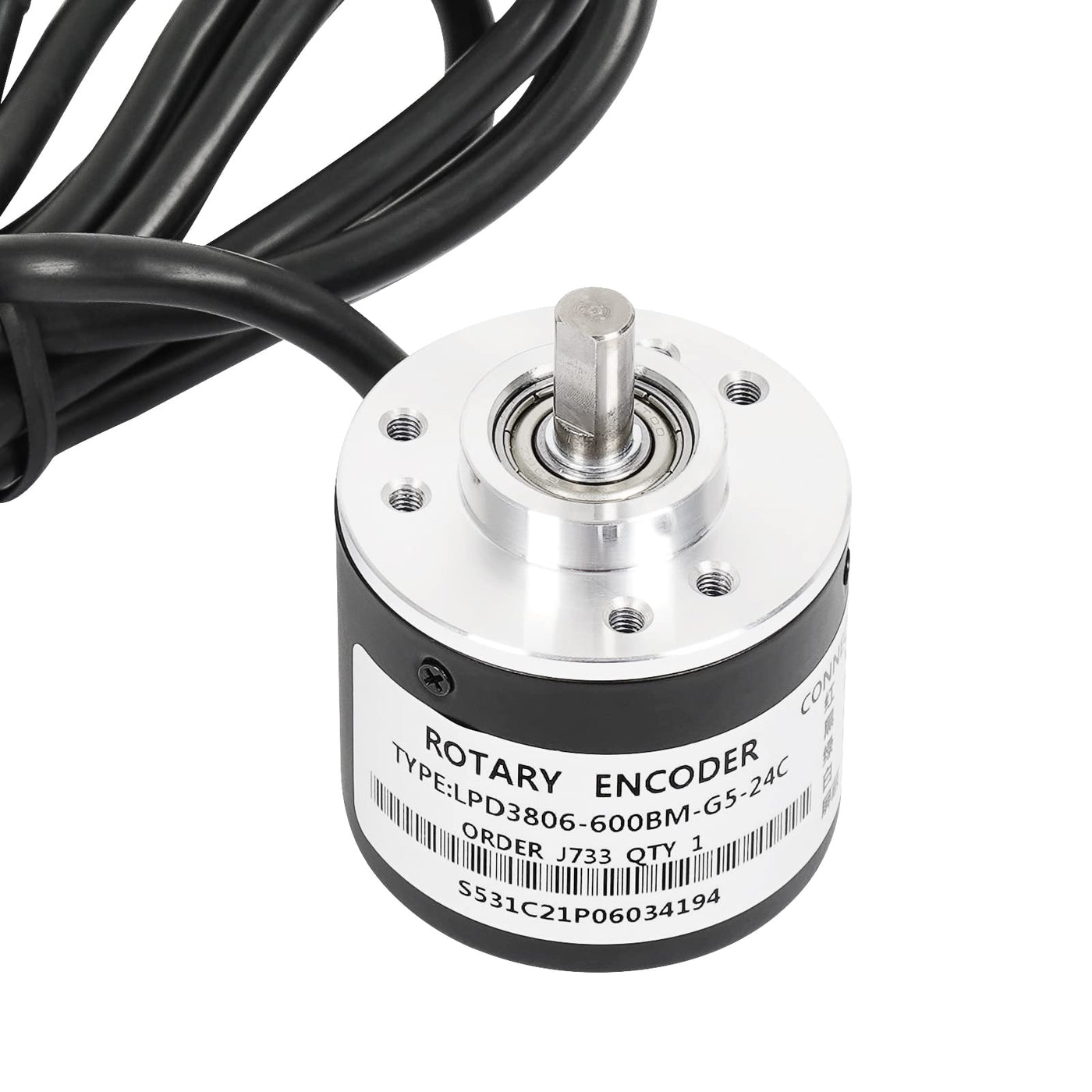

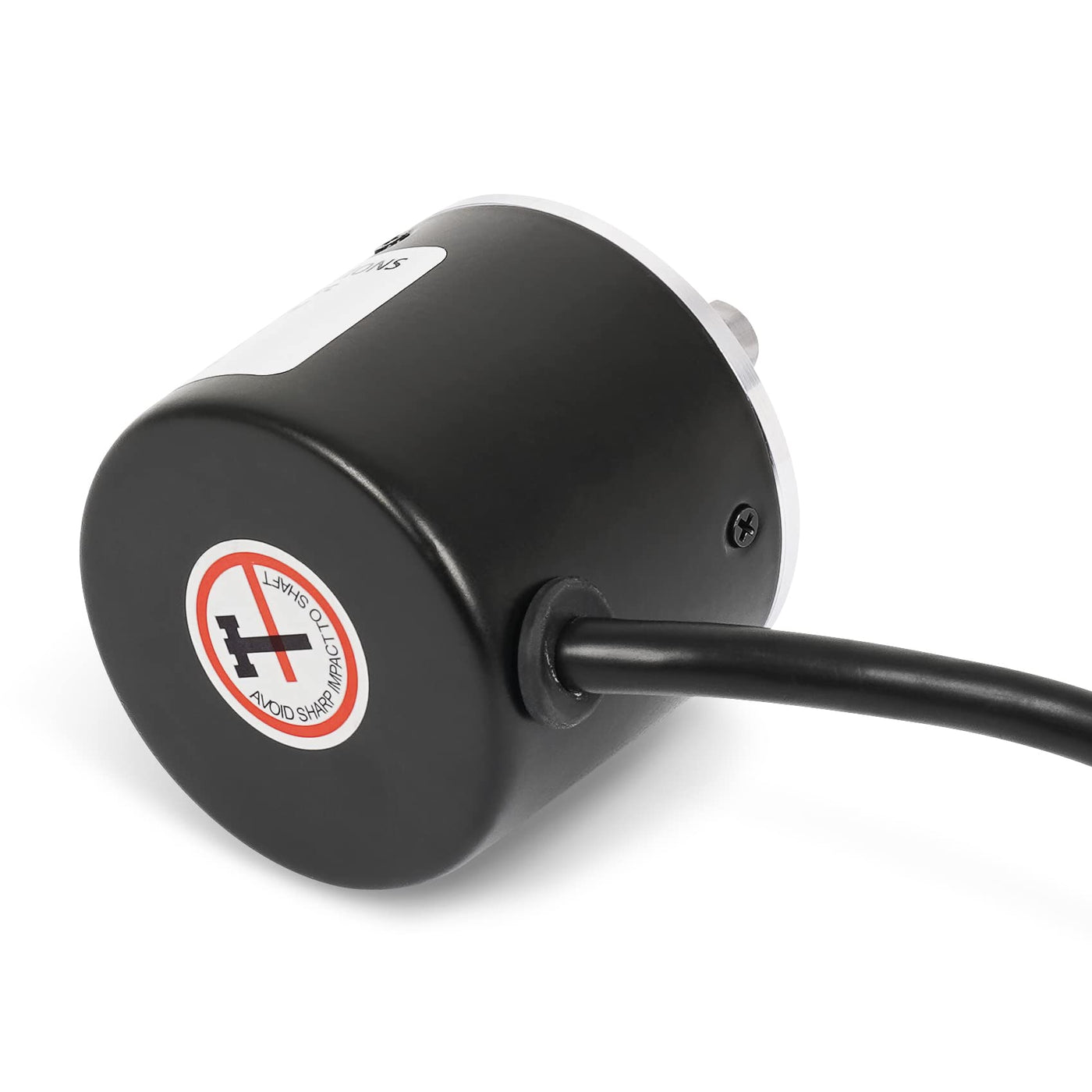

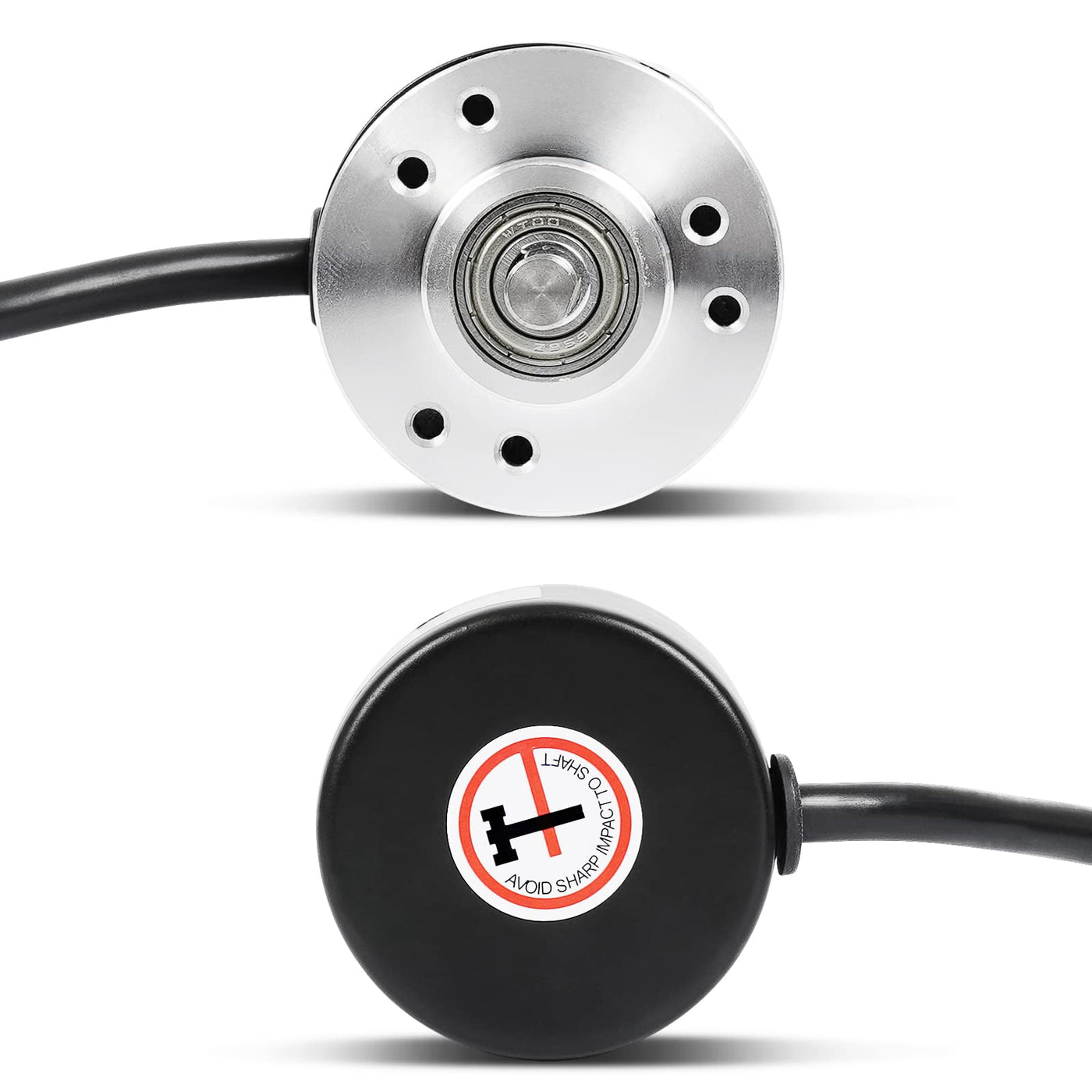

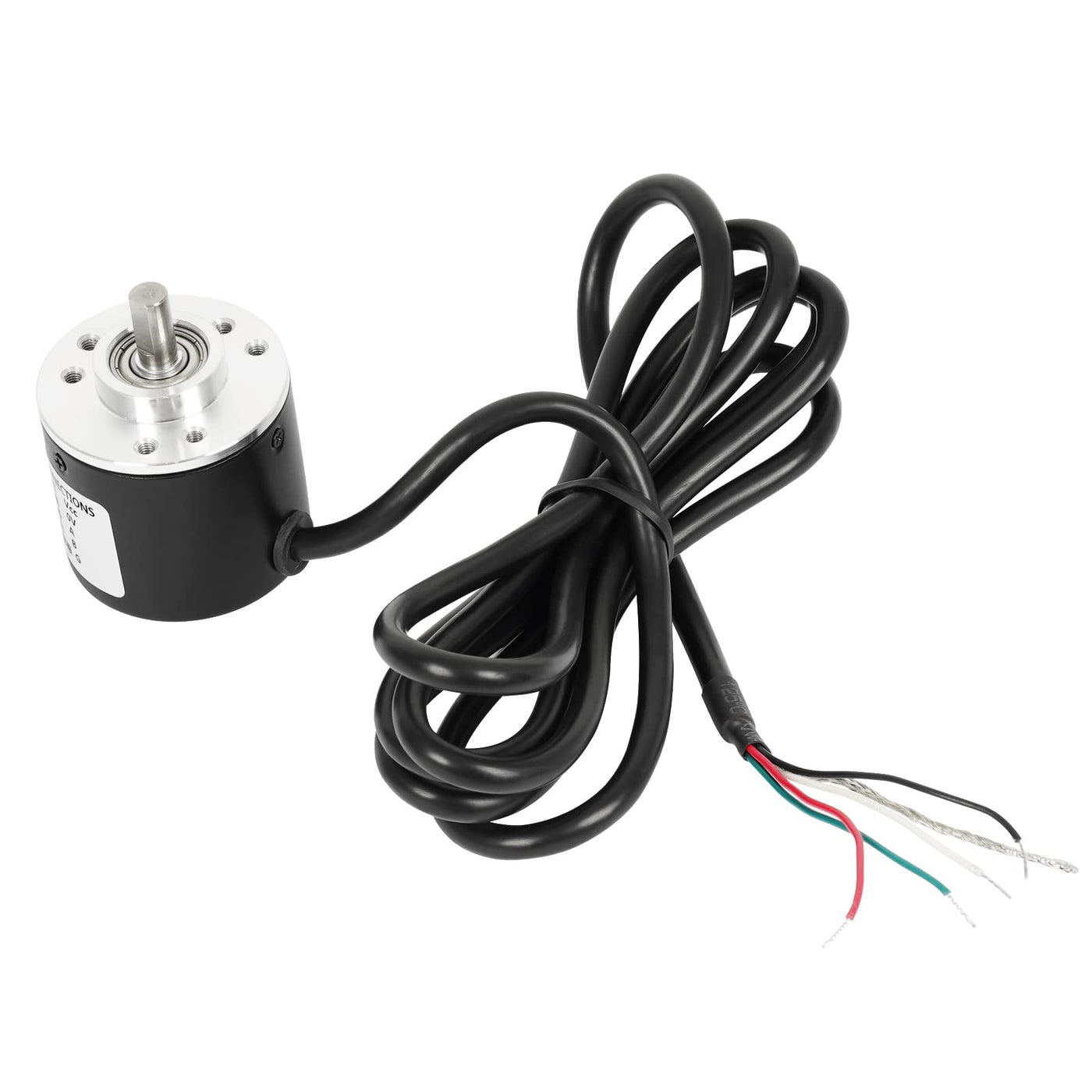

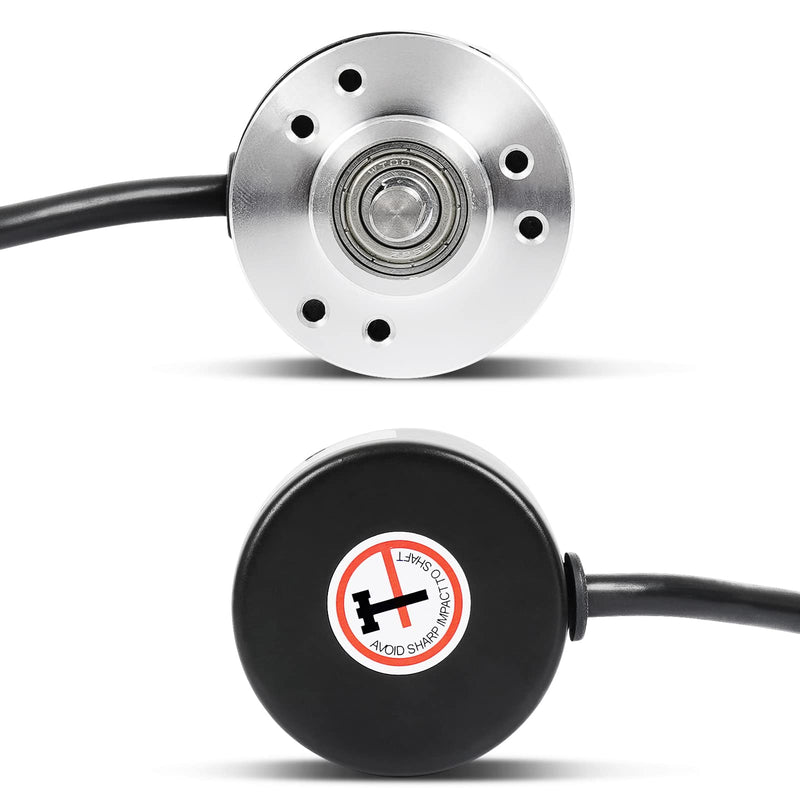

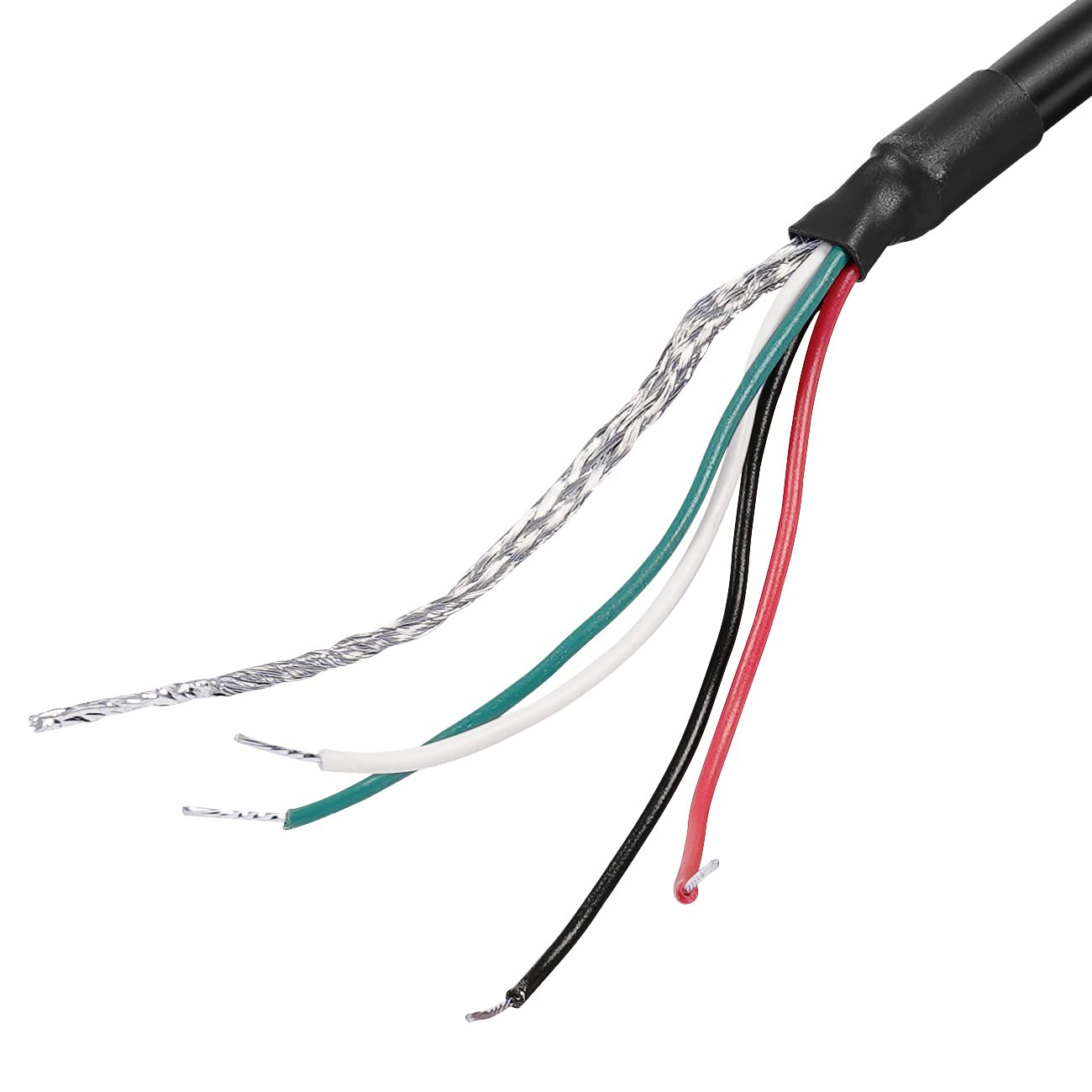

{"id":12655613116576,"title":"WISAMIC 600p\/r Incremental Rotary Encoder Dc5-24v wide input voltage range 6mm axis","handle":"wisamic-600p-r-incremental-rotary-encoder-dc5-24v-wide-input-voltage-range-6mm-axis","description":"\u003ch3\u003eWISAMIC 600p\/r incremental rotary encoder Incremental Rotary Encoder Dc5-24v wide input voltage range 6mm axis\u003c\/h3\u003e \u003cp id=\"b\"\u003e600 p\/r (single phase 360 pulses\/R, two phase 4 frequency doubling up to 1440 pulses) . For measuring goods angle, acceleration, length measurement and rotation speed for a variety of distance measurement intelligent control, measuring height of civil body scale and so on. With small size, light weight, easy to install, cost-effective features. Connection: Red = A phase, Green = B phase, White = Vcc power +, Black = Power - Note: AB 2PHASE output does not need to be directly connected to VCC, otherwise the output triode will burn.Specifications: DC5-24V Wide voltage power supply Speed: more than 5000RPM Shaft: 6mm\/0.23\" Dia, 13mm\/0.51\" Length Size: 39mm\/1.53\" Dia, 36.5mm\/1.43\" Length Output: AB 2PHASE output rectangular orthogonal pulse circuit, the output for the NPN -Open collector output Package Included: 1 x Encoder 600P\/R Incremental Rotary Encoder\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e100% brand new and high quality. Easy to install\u003c\/li\u003e \u003cli\u003eMade of stainless steel, high quality incremental rotary encoder\u003c\/li\u003e \u003cli\u003eDurable and practical, good quality workmanship.\u003c\/li\u003e \u003cli\u003eWith small size, light weight, easy to install, cost-effective Functions\u003c\/li\u003e \u003cli\u003eFor measuring product angles, acceleration, length measurements and speed\u003c\/li\u003e \u003c\/ul\u003e","published_at":"2024-03-09T04:24:27+11:00","created_at":"2024-03-09T04:24:36+11:00","vendor":"WISAMIC","type":"Switching encoder","tags":["industryDE"],"price":20600,"price_min":20600,"price_max":20600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":48994639839392,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B015GYY7XU","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"WISAMIC 600p\/r Incremental Rotary Encoder Dc5-24v wide input voltage range 6mm axis","public_title":null,"options":["Default Title"],"price":20600,"weight":150,"compare_at_price":null,"inventory_management":"shopify","barcode":"600346181199","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B015GYY7XU.jpg?v=1709941025","\/\/dingoship.com.au\/cdn\/shop\/products\/61rvuvlUsbL_ac67b285-3197-44c4-8488-f1841d6b3b33.jpg?v=1709918676","\/\/dingoship.com.au\/cdn\/shop\/products\/61QsdXnhn7L_a221e603-cd39-4dad-9912-78f257bf9bb8.jpg?v=1709918676","\/\/dingoship.com.au\/cdn\/shop\/products\/51u7uGS0w9L_6c1e3752-ea0b-4c91-b7f3-17d71fed4580.jpg?v=1709918676","\/\/dingoship.com.au\/cdn\/shop\/products\/61fLLu1kwCL_59148e5e-4efe-4877-83b1-470e3e01eaeb.jpg?v=1709918676","\/\/dingoship.com.au\/cdn\/shop\/products\/51BGH50uwrL_fcb25ed3-53db-404e-978c-fa7a15b01c6f.jpg?v=1709918676","\/\/dingoship.com.au\/cdn\/shop\/products\/6111aU9SUAL_a66a1486-d6a1-4721-9d2f-7fd0d99a1f2a.jpg?v=1709918676"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B015GYY7XU.jpg?v=1709941025","options":["Title"],"media":[{"alt":null,"id":32719059419296,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B015GYY7XU.jpg?v=1709941025"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B015GYY7XU.jpg?v=1709941025","width":1600},{"alt":null,"id":32715317903520,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61rvuvlUsbL_ac67b285-3197-44c4-8488-f1841d6b3b33.jpg?v=1709918676"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61rvuvlUsbL_ac67b285-3197-44c4-8488-f1841d6b3b33.jpg?v=1709918676","width":1600},{"alt":null,"id":32715317936288,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61QsdXnhn7L_a221e603-cd39-4dad-9912-78f257bf9bb8.jpg?v=1709918676"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61QsdXnhn7L_a221e603-cd39-4dad-9912-78f257bf9bb8.jpg?v=1709918676","width":1600},{"alt":null,"id":32715317969056,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1700,"width":1700,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51u7uGS0w9L_6c1e3752-ea0b-4c91-b7f3-17d71fed4580.jpg?v=1709918676"},"aspect_ratio":1.0,"height":1700,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51u7uGS0w9L_6c1e3752-ea0b-4c91-b7f3-17d71fed4580.jpg?v=1709918676","width":1700},{"alt":null,"id":32715318001824,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61fLLu1kwCL_59148e5e-4efe-4877-83b1-470e3e01eaeb.jpg?v=1709918676"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/61fLLu1kwCL_59148e5e-4efe-4877-83b1-470e3e01eaeb.jpg?v=1709918676","width":1600},{"alt":null,"id":32715318034592,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1300,"width":1300,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51BGH50uwrL_fcb25ed3-53db-404e-978c-fa7a15b01c6f.jpg?v=1709918676"},"aspect_ratio":1.0,"height":1300,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51BGH50uwrL_fcb25ed3-53db-404e-978c-fa7a15b01c6f.jpg?v=1709918676","width":1300},{"alt":null,"id":32715318067360,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/6111aU9SUAL_a66a1486-d6a1-4721-9d2f-7fd0d99a1f2a.jpg?v=1709918676"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/6111aU9SUAL_a66a1486-d6a1-4721-9d2f-7fd0d99a1f2a.jpg?v=1709918676","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWISAMIC 600p\/r incremental rotary encoder Incremental Rotary Encoder Dc5-24v wide input voltage range 6mm axis\u003c\/h3\u003e \u003cp id=\"b\"\u003e600 p\/r (single phase 360 pulses\/R, two phase 4 frequency doubling up to 1440 pulses) . For measuring goods angle, acceleration, length measurement and rotation speed for a variety of distance measurement intelligent control, measuring height of civil body scale and so on. With small size, light weight, easy to install, cost-effective features. Connection: Red = A phase, Green = B phase, White = Vcc power +, Black = Power - Note: AB 2PHASE output does not need to be directly connected to VCC, otherwise the output triode will burn.Specifications: DC5-24V Wide voltage power supply Speed: more than 5000RPM Shaft: 6mm\/0.23\" Dia, 13mm\/0.51\" Length Size: 39mm\/1.53\" Dia, 36.5mm\/1.43\" Length Output: AB 2PHASE output rectangular orthogonal pulse circuit, the output for the NPN -Open collector output Package Included: 1 x Encoder 600P\/R Incremental Rotary Encoder\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003e100% brand new and high quality. Easy to install\u003c\/li\u003e \u003cli\u003eMade of stainless steel, high quality incremental rotary encoder\u003c\/li\u003e \u003cli\u003eDurable and practical, good quality workmanship.\u003c\/li\u003e \u003cli\u003eWith small size, light weight, easy to install, cost-effective Functions\u003c\/li\u003e \u003cli\u003eFor measuring product angles, acceleration, length measurements and speed\u003c\/li\u003e \u003c\/ul\u003e"}
