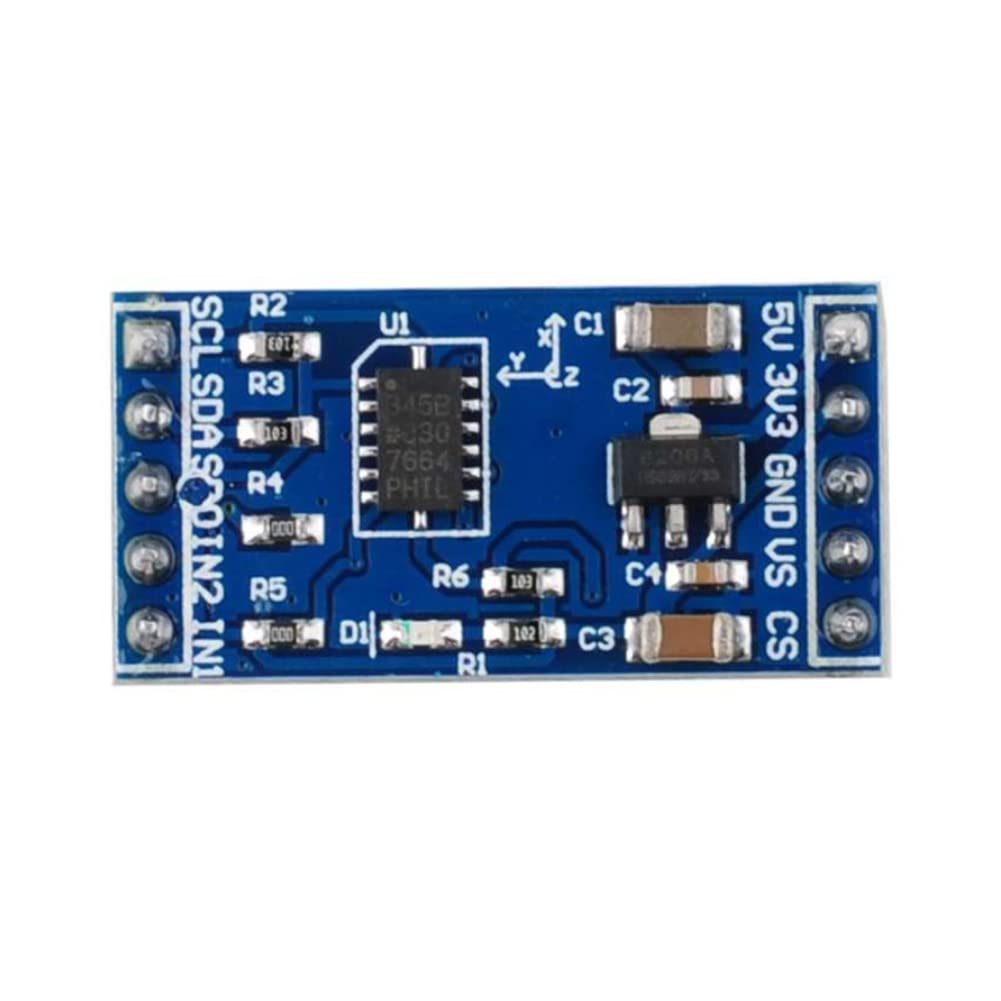

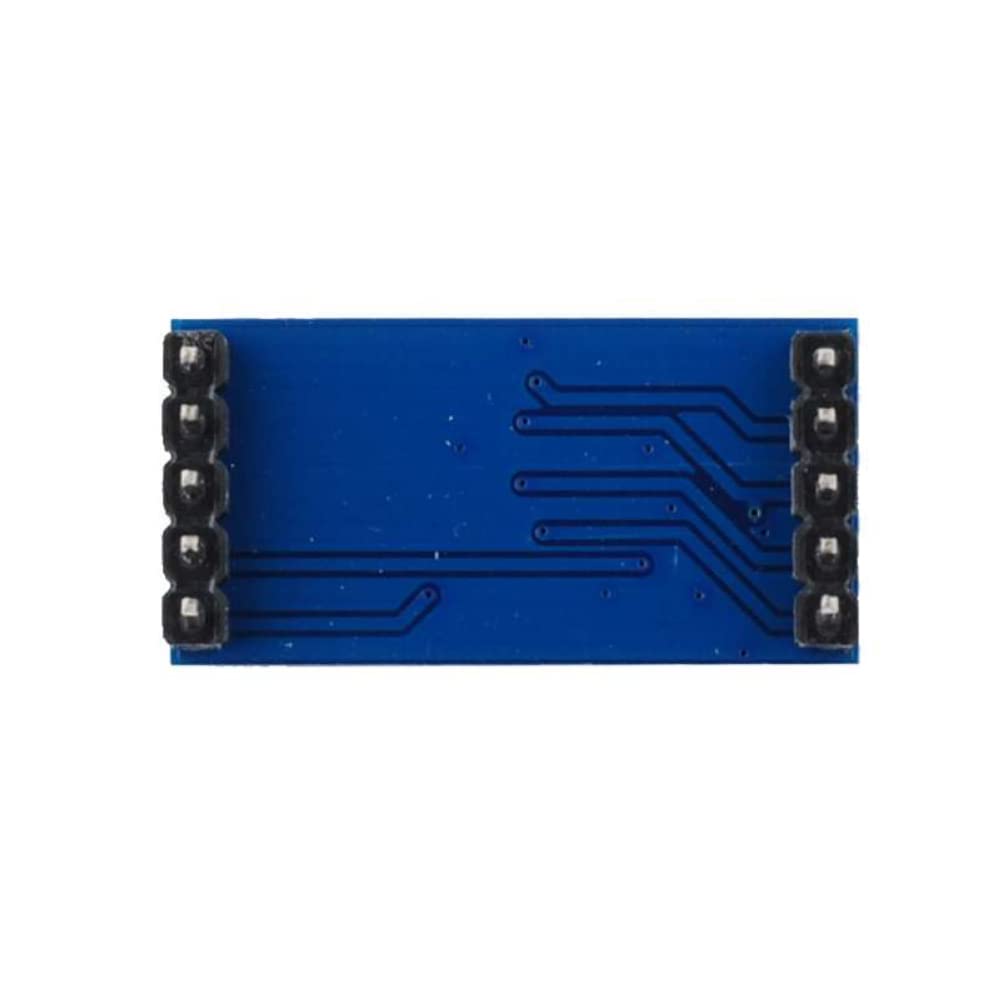

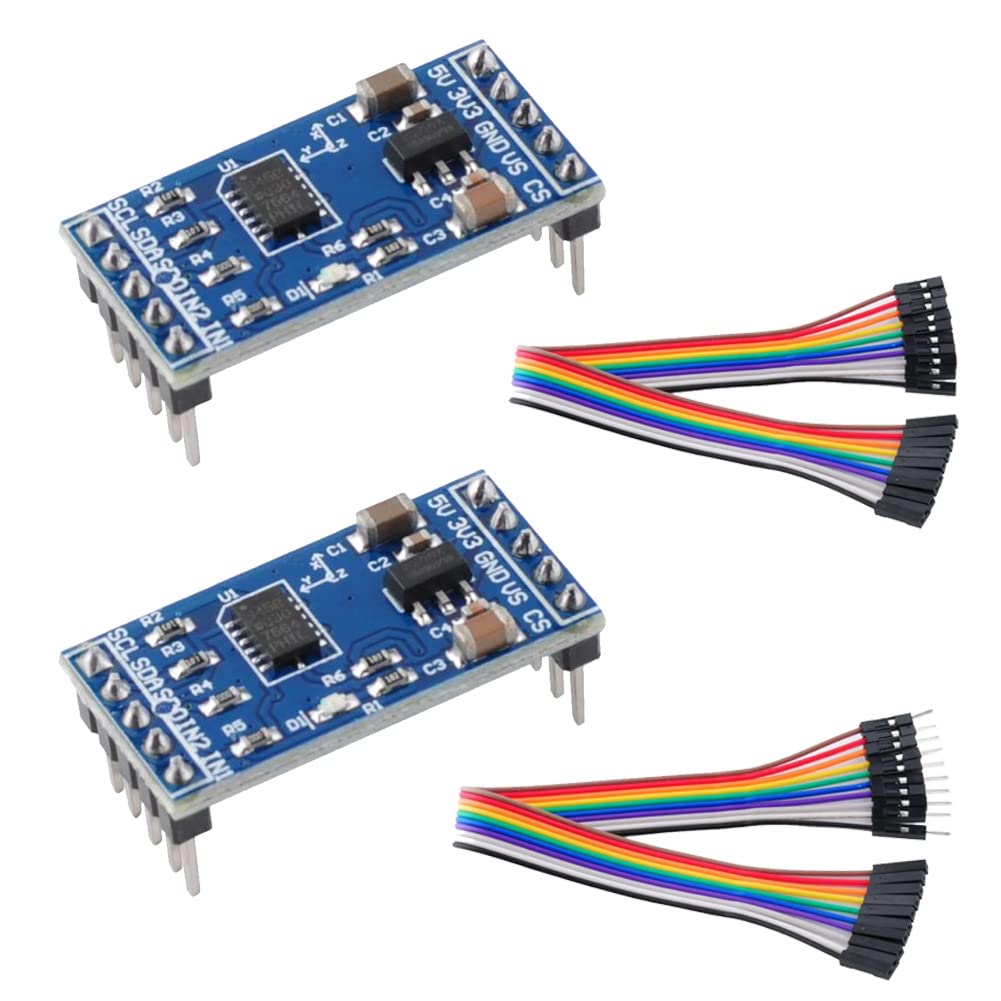

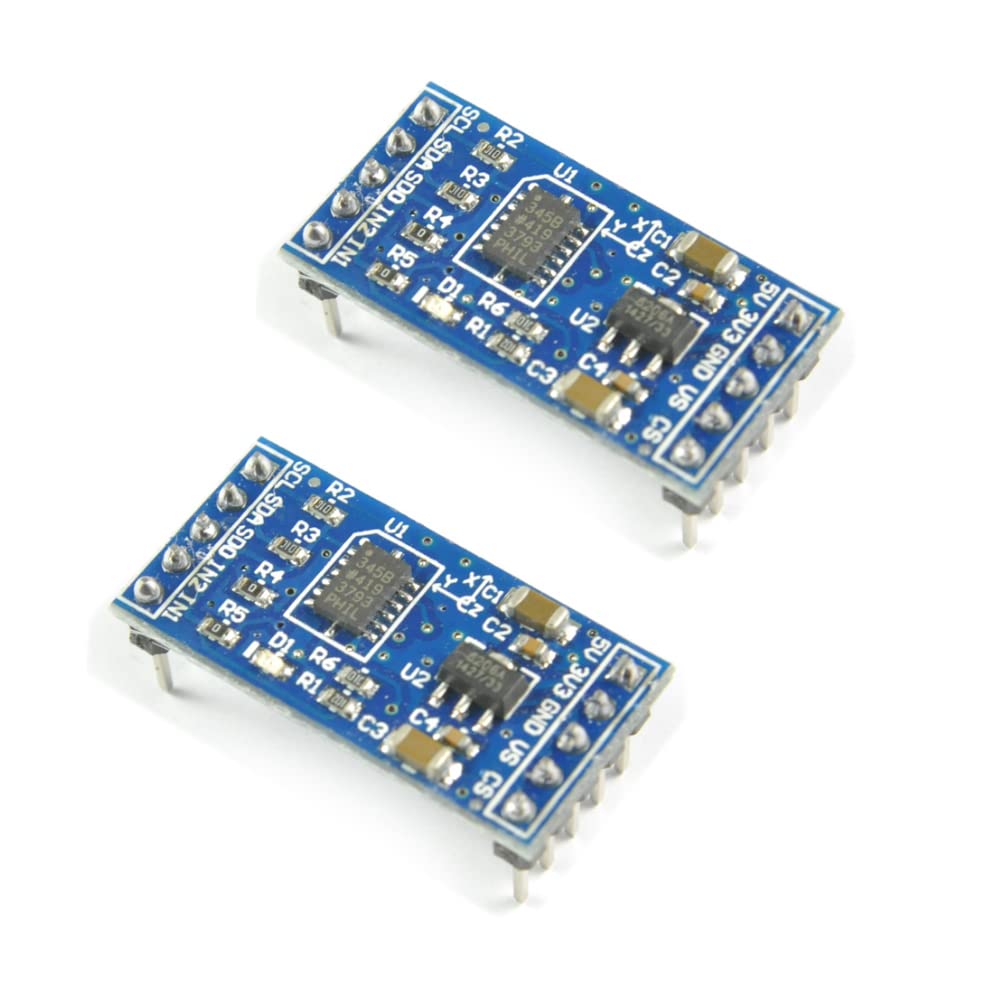

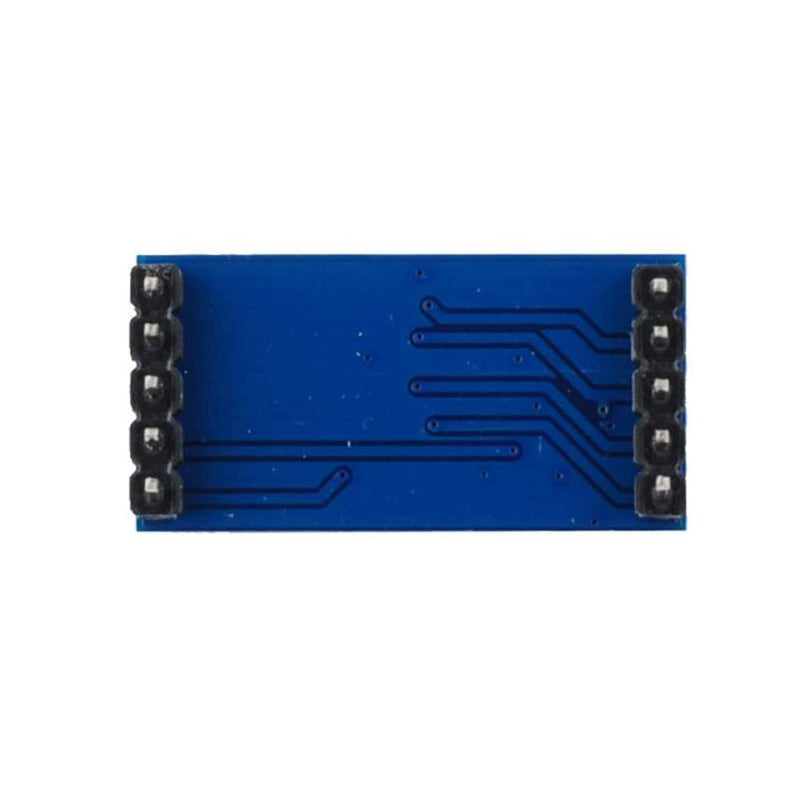

{"id":7414091284640,"title":"Wishiot ADXL345 Digital Accelerometer Module IIC\/SPI 3-Axis Inclination Tilt Sensor with 10Pin Female to Female\/Female to Male Dupont Cable for Arduino Raspberry Pi (Pack of 2)","handle":"wishiot-adxl345-digital-accelerometer-module-iic-spi-3-axis-inclination-tilt-sensor-with-10pin-female-to-female-female-to-male-dupont-cable-for-arduino-raspberry-pi-pack-of-2","description":"\u003ch3\u003eWishiot ADXL345 Digital Accelerometer Module IIC\/SPI 3-Axis Inclination Tilt Sensor with 10Pin Female to Female\/Female to Male Dupont Cable for Arduino Raspberry Pi (Pack of 2)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The ADXL345 is low power, high resolution 13bit, 3-axis\naccelerometer Digital output, accessible through both SPI (3 or 4-wire) or I2C\ninterface (formatted as 16-bit twos complement). ADXL345 will measure static\nacceleration and tilt as well as High G dynamic acceleration (motion or shock)\n13 Bit resolution allows for inclination change measurements \u0026lt;1.0° (4 mg\/LSB)\nADXL345 will detect: motion or lack of motion acceleration on any axis\nexceeding user-defined level acceleration threshold sensing acceleration up to\n±16 g Single or Double tap sensing (1 or 2 mouse clicks) Free-fall sensing\nmotion mappable to one or two interrupt outputs Specifications: 2.0-3.6VDC\nSupply Voltage 0.1uA @ 2.5V, 40uA in normal mode SPI \/ I2C interfaces Female\nto Female cable is for ADXL345 with MCU which is onboard male pin header like\nRaspberry Pi board ADXL345 wiring with RPi board: 3V3--3.3V, GND--GND, SDA--\nGPIO2, SCL--GPIO3. Female to Male cable is for ADXL345 with MCU which is\nonboard female header such as UNOR3board. ADXL345 wiring with UNOR3board: 3V3\n--3.3V, GND--GND, CS--Pin10, SDA--Pin11, SDO--Pin12, SCL--Pin13. Package\nIncluded: 2 X ADXL345 Digital Accelerometer Sensor Module 1 X 10Pin 2.54mm\nFemale to Female Dupont Cable 20cm 1 X 10Pin 2.54mm Female to Male Dupont\nCable 20cm\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1, Onboard ADXL345 digital output (support I2C\/SPI), low power consumption, compact accelerometer.\u003c\/li\u003e\n \u003cli\u003e2, Support 5V\/3.3V voltage input, onboard RT9161 power chip, lower voltage drop compared with chip 1117, faster load response speed, very suitable for high-noise power supply environment.\u003c\/li\u003e\n \u003cli\u003e3, The commonly used pins have been drawn out, and it is soldered with standard 2.54mm pin header, which is convenient for dot matrix boards.\u003c\/li\u003e\n \u003cli\u003e4, Prepared 2 cables for this module, Female to Female cable is for ADXL345 with MCU which is onboard male pin header like Raspberry Pi board, while Female to Male cable is for ADXL345 with MCU which is onboard female header such as UNOR3board.\u003c\/li\u003e\n \u003cli\u003e5, What you will get is 2pcs ADXL345 Accelerometer module + 1pc 10Pin 2.54mm Female to Female Dupont Cable 20cm + 1pc 10Pin 2.54mm Female to Male Dupont Cable 20cm. 6, If you have any question, please contact us by clicking \"Wishiot\" under the shopping cart(you can find \"Sold by Wishiot\" under Buy Now button), in the new page, click \"Ask a question\" to email us.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-14T15:37:37+10:00","created_at":"2022-06-14T15:37:41+10:00","vendor":"Wishiot","type":"Acceleration Sensors","tags":["dingo"],"price":12100,"price_min":12100,"price_max":12100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42194481250464,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09T6VJWNY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Wishiot ADXL345 Digital Accelerometer Module IIC\/SPI 3-Axis Inclination Tilt Sensor with 10Pin Female to Female\/Female to Male Dupont Cable for Arduino Raspberry Pi (Pack of 2)","public_title":null,"options":["Default Title"],"price":12100,"weight":18,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/products\/B09T6VJWNY.jpg?v=1655253147","\/\/dingoship.com.au\/cdn\/shop\/products\/51n2Gd5QucL.jpg?v=1655185061","\/\/dingoship.com.au\/cdn\/shop\/products\/51cJIUTbJZL.jpg?v=1655185061","\/\/dingoship.com.au\/cdn\/shop\/products\/516gR7_5FHL.jpg?v=1655185061","\/\/dingoship.com.au\/cdn\/shop\/products\/418ybAQ0acL.jpg?v=1655185061","\/\/dingoship.com.au\/cdn\/shop\/products\/51xrMKw72_L.jpg?v=1655185061"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09T6VJWNY.jpg?v=1655253147","options":["Title"],"media":[{"alt":null,"id":24860425453728,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09T6VJWNY.jpg?v=1655253147"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/B09T6VJWNY.jpg?v=1655253147","width":1001},{"alt":null,"id":24854167748768,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51n2Gd5QucL.jpg?v=1655185061"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51n2Gd5QucL.jpg?v=1655185061","width":1001},{"alt":null,"id":24854167781536,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51cJIUTbJZL.jpg?v=1655185061"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51cJIUTbJZL.jpg?v=1655185061","width":1001},{"alt":null,"id":24854167814304,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/516gR7_5FHL.jpg?v=1655185061"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/516gR7_5FHL.jpg?v=1655185061","width":1001},{"alt":null,"id":24854167847072,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/418ybAQ0acL.jpg?v=1655185061"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/418ybAQ0acL.jpg?v=1655185061","width":1001},{"alt":null,"id":24854167879840,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51xrMKw72_L.jpg?v=1655185061"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/products\/51xrMKw72_L.jpg?v=1655185061","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eWishiot ADXL345 Digital Accelerometer Module IIC\/SPI 3-Axis Inclination Tilt Sensor with 10Pin Female to Female\/Female to Male Dupont Cable for Arduino Raspberry Pi (Pack of 2)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: The ADXL345 is low power, high resolution 13bit, 3-axis\naccelerometer Digital output, accessible through both SPI (3 or 4-wire) or I2C\ninterface (formatted as 16-bit twos complement). ADXL345 will measure static\nacceleration and tilt as well as High G dynamic acceleration (motion or shock)\n13 Bit resolution allows for inclination change measurements \u0026lt;1.0° (4 mg\/LSB)\nADXL345 will detect: motion or lack of motion acceleration on any axis\nexceeding user-defined level acceleration threshold sensing acceleration up to\n±16 g Single or Double tap sensing (1 or 2 mouse clicks) Free-fall sensing\nmotion mappable to one or two interrupt outputs Specifications: 2.0-3.6VDC\nSupply Voltage 0.1uA @ 2.5V, 40uA in normal mode SPI \/ I2C interfaces Female\nto Female cable is for ADXL345 with MCU which is onboard male pin header like\nRaspberry Pi board ADXL345 wiring with RPi board: 3V3--3.3V, GND--GND, SDA--\nGPIO2, SCL--GPIO3. Female to Male cable is for ADXL345 with MCU which is\nonboard female header such as UNOR3board. ADXL345 wiring with UNOR3board: 3V3\n--3.3V, GND--GND, CS--Pin10, SDA--Pin11, SDO--Pin12, SCL--Pin13. Package\nIncluded: 2 X ADXL345 Digital Accelerometer Sensor Module 1 X 10Pin 2.54mm\nFemale to Female Dupont Cable 20cm 1 X 10Pin 2.54mm Female to Male Dupont\nCable 20cm\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1, Onboard ADXL345 digital output (support I2C\/SPI), low power consumption, compact accelerometer.\u003c\/li\u003e\n \u003cli\u003e2, Support 5V\/3.3V voltage input, onboard RT9161 power chip, lower voltage drop compared with chip 1117, faster load response speed, very suitable for high-noise power supply environment.\u003c\/li\u003e\n \u003cli\u003e3, The commonly used pins have been drawn out, and it is soldered with standard 2.54mm pin header, which is convenient for dot matrix boards.\u003c\/li\u003e\n \u003cli\u003e4, Prepared 2 cables for this module, Female to Female cable is for ADXL345 with MCU which is onboard male pin header like Raspberry Pi board, while Female to Male cable is for ADXL345 with MCU which is onboard female header such as UNOR3board.\u003c\/li\u003e\n \u003cli\u003e5, What you will get is 2pcs ADXL345 Accelerometer module + 1pc 10Pin 2.54mm Female to Female Dupont Cable 20cm + 1pc 10Pin 2.54mm Female to Male Dupont Cable 20cm. 6, If you have any question, please contact us by clicking \"Wishiot\" under the shopping cart(you can find \"Sold by Wishiot\" under Buy Now button), in the new page, click \"Ask a question\" to email us.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
