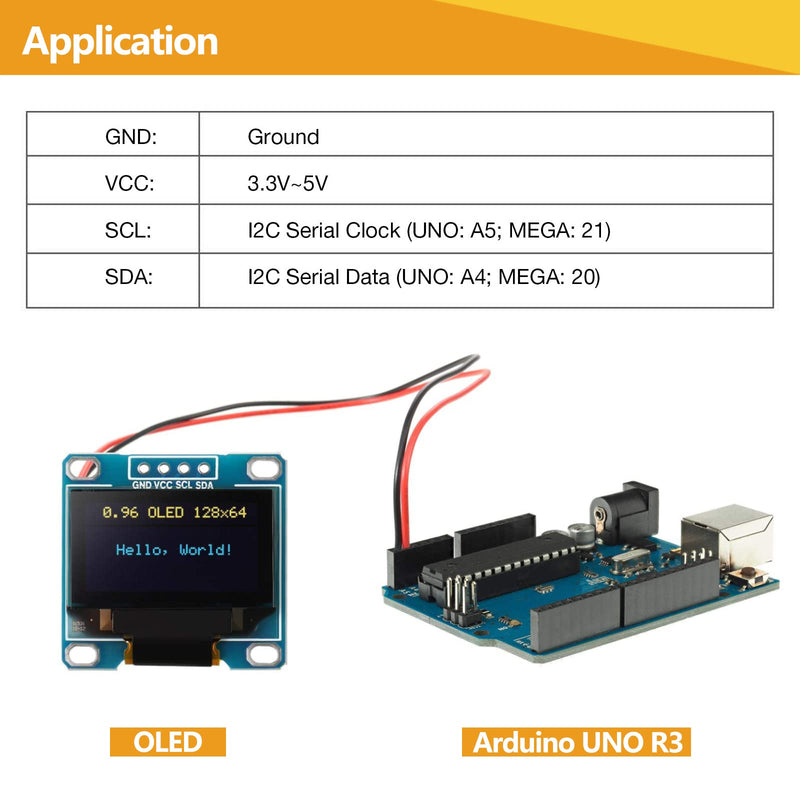

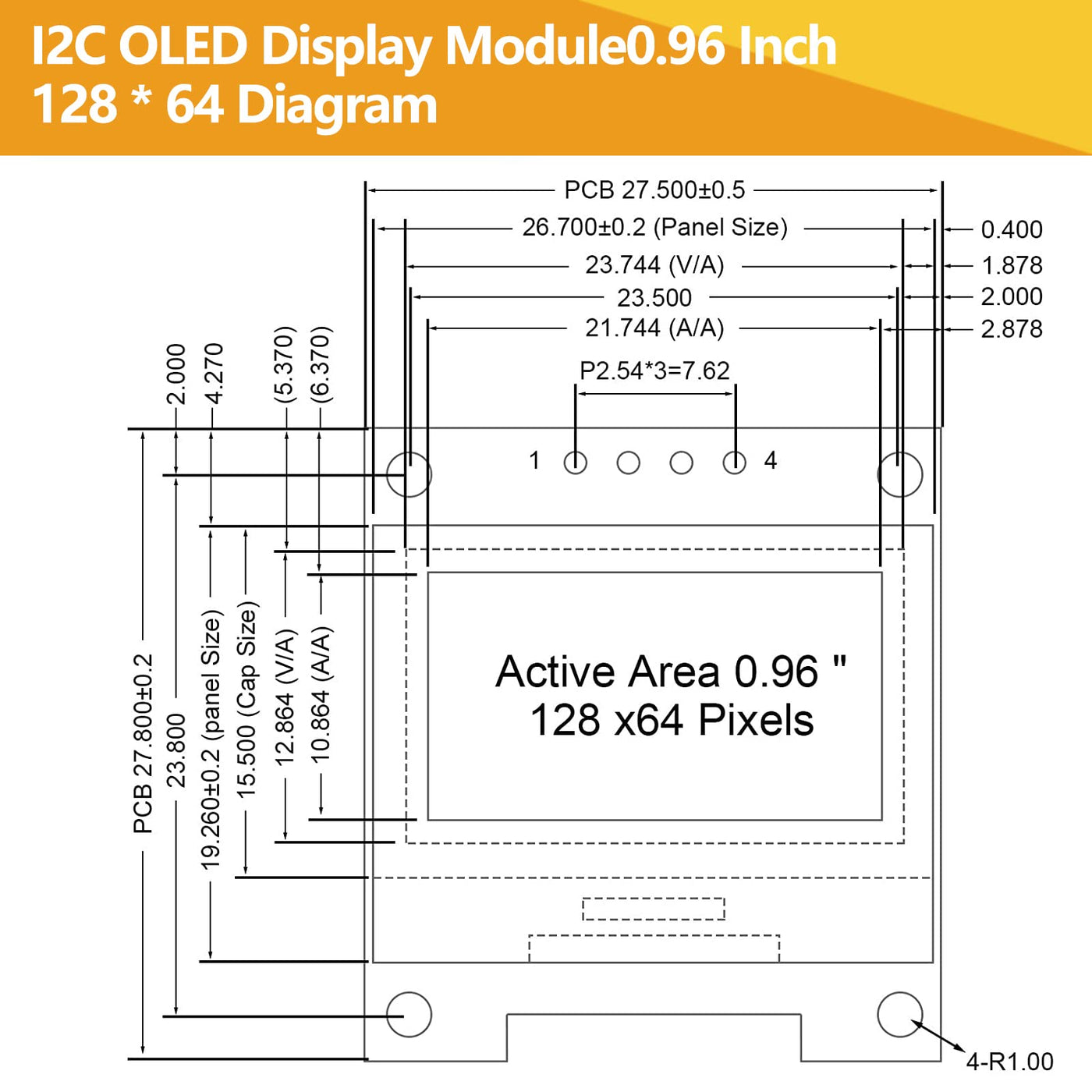

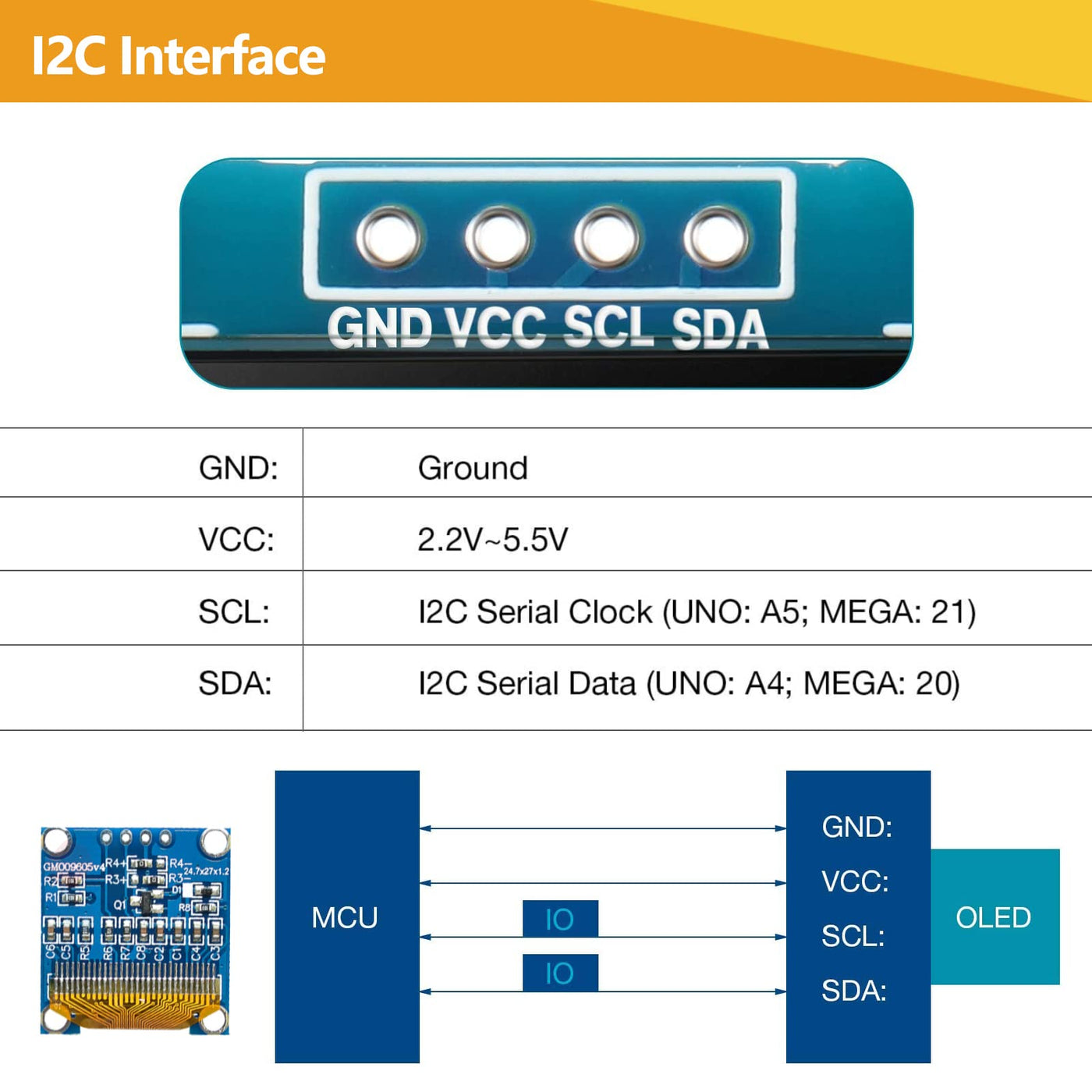

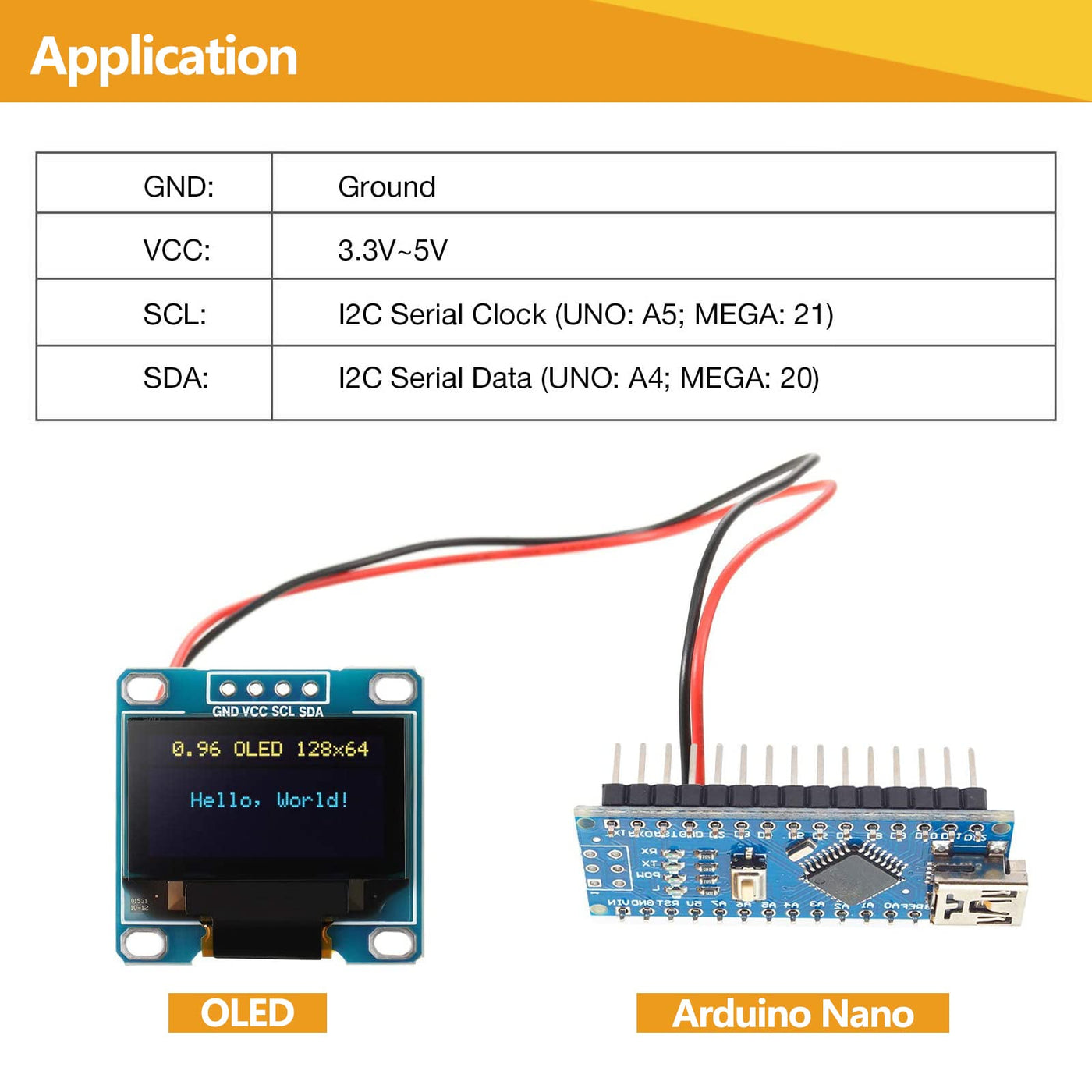

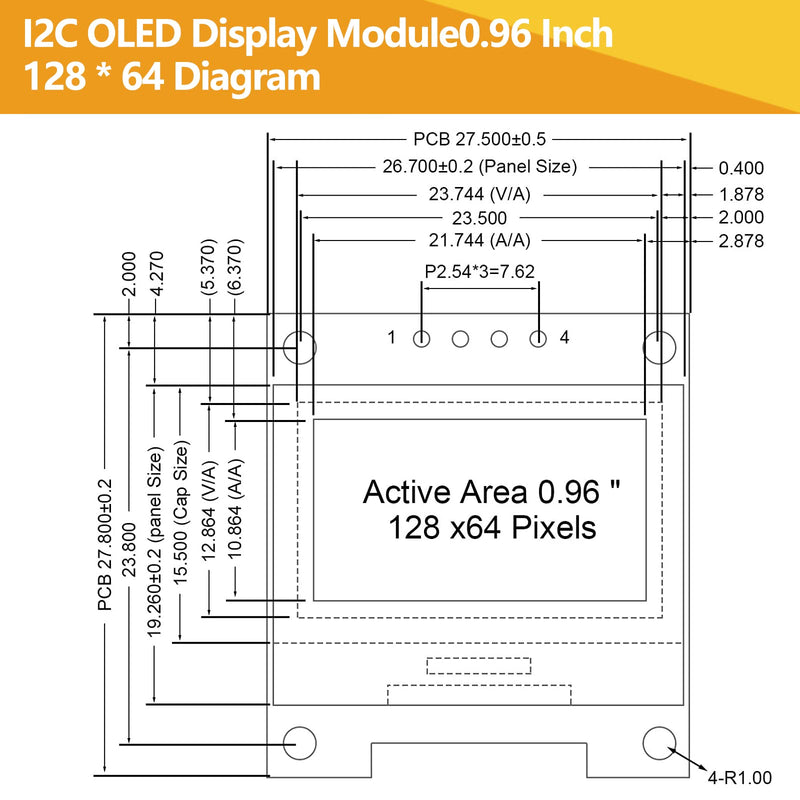

{"id":15190116696224,"title":"XTVTX 3PCS 0.96 Inch OLED Module 12864 128x64 Driver IIC I2C Serial Luminous Display Board Compatible with Arduino PI (Blue and Yellow)","handle":"xtvtx-3pcs-0-96-inch-oled-module-12864-128x64-driver-iic-i2c-serial-luminous-display-board-compatible-with-arduino-pi-blue-and-yellow","description":"\u003ch3\u003eXTVTX 3PCS 0.96 inch OLED Module 12864 128x64 Driver IIC I2C Serial Luminous Display Board Compatible with Arduino PI (Blue and Yellow)\u003c\/h3\u003e \u003cp id=\"b\"\u003eFeatures: OLED self-illuminating, no backlight Size: 0.96\" Voltage: 3.3V-5V DC Viewing angle: \u0026gt; 160° High resolution: 128 x 64 Working temperature: -30°C ~ 70°C Display: 2 rows yellow, 6 rows blue Module size: 27mm x 27mm x 4mm Screen Material: Glass, need good protection I2C Interface: GND: Ground VCC: 3.3V~5V SCL: I2C Serial Clock (UNO: A5; MEGA: 21) SDA: I2C Serial Data (UNO: A4; MEGA: 20 ) Applications: MP3, MP4, watch head-mounted displays gauges and other smart instruments Design pretty patterns for your beloved electronic devices!Package included: 3 0.96 inch 128X64 Yellow Blue OLED Display Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eResolution: 128 x 64; Viewing angle: greater than 160 degrees; Support voltage: 3.3V-5V DC; Power consumption: normal working 0.04W, full screen illumination 0 .08W\u003c\/li\u003e\n\u003cli\u003eApplication: 0.96 inch OLED module used to display graphics and text information directly on your microcontroller project; Supports a variety of chips: compatible with Arduino Mega, Pi, 51 MCU, STIM 32, etc.\u003c\/li\u003e \u003cli\u003eSelf-illumination: No backlight is required and the display can self-illuminate. it has high contrast, bright and clear dots, even small fonts are easy to read\u003c\/li\u003e \u003cli\u003eIntegrated driver IC: Communication: I2C\/IIC interface, only 2 I\/O ports are needed; Compatible with MMDVM, Pi-Star and compatible with Pi\u003c\/li\u003e\n\u003cli\u003eAbout fonts: There are no fonts embedded in the OLED controller. Users can create fonts through font generation software\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-10-01T16:45:21+10:00","created_at":"2025-10-01T16:45:18+10:00","vendor":"XTVTX","type":"LCD dot matrix modules","tags":["industryDE"],"price":16100,"price_min":16100,"price_max":16100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52864233930912,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09GVTRB2W","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"XTVTX 3PCS 0.96 Inch OLED Module 12864 128x64 Driver IIC I2C Serial Luminous Display Board Compatible with Arduino PI (Blue and Yellow)","public_title":null,"options":["Default Title"],"price":16100,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/61_NrVkuQoL.jpg?v=1759301120","\/\/dingoship.com.au\/cdn\/shop\/files\/710QvEJhDNL.jpg?v=1759301120","\/\/dingoship.com.au\/cdn\/shop\/files\/71RYVZMfRNL.jpg?v=1759301120","\/\/dingoship.com.au\/cdn\/shop\/files\/71L-u62fQBL.jpg?v=1759301120","\/\/dingoship.com.au\/cdn\/shop\/files\/61tCDr6nAAL.jpg?v=1759301120","\/\/dingoship.com.au\/cdn\/shop\/files\/71CJiV9qY4L.jpg?v=1759301120","\/\/dingoship.com.au\/cdn\/shop\/files\/71Fp9ZMTtWL.jpg?v=1759301120"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/61_NrVkuQoL.jpg?v=1759301120","options":["Title"],"media":[{"alt":null,"id":38370926264480,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61_NrVkuQoL.jpg?v=1759301120"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61_NrVkuQoL.jpg?v=1759301120","width":1600},{"alt":null,"id":38370926297248,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/710QvEJhDNL.jpg?v=1759301120"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/710QvEJhDNL.jpg?v=1759301120","width":1600},{"alt":null,"id":38370926330016,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71RYVZMfRNL.jpg?v=1759301120"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71RYVZMfRNL.jpg?v=1759301120","width":1600},{"alt":null,"id":38370926362784,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71L-u62fQBL.jpg?v=1759301120"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71L-u62fQBL.jpg?v=1759301120","width":1600},{"alt":null,"id":38370926395552,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61tCDr6nAAL.jpg?v=1759301120"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61tCDr6nAAL.jpg?v=1759301120","width":1600},{"alt":null,"id":38370926428320,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71CJiV9qY4L.jpg?v=1759301120"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71CJiV9qY4L.jpg?v=1759301120","width":1600},{"alt":null,"id":38370926461088,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71Fp9ZMTtWL.jpg?v=1759301120"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71Fp9ZMTtWL.jpg?v=1759301120","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eXTVTX 3PCS 0.96 inch OLED Module 12864 128x64 Driver IIC I2C Serial Luminous Display Board Compatible with Arduino PI (Blue and Yellow)\u003c\/h3\u003e \u003cp id=\"b\"\u003eFeatures: OLED self-illuminating, no backlight Size: 0.96\" Voltage: 3.3V-5V DC Viewing angle: \u0026gt; 160° High resolution: 128 x 64 Working temperature: -30°C ~ 70°C Display: 2 rows yellow, 6 rows blue Module size: 27mm x 27mm x 4mm Screen Material: Glass, need good protection I2C Interface: GND: Ground VCC: 3.3V~5V SCL: I2C Serial Clock (UNO: A5; MEGA: 21) SDA: I2C Serial Data (UNO: A4; MEGA: 20 ) Applications: MP3, MP4, watch head-mounted displays gauges and other smart instruments Design pretty patterns for your beloved electronic devices!Package included: 3 0.96 inch 128X64 Yellow Blue OLED Display Module\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eResolution: 128 x 64; Viewing angle: greater than 160 degrees; Support voltage: 3.3V-5V DC; Power consumption: normal working 0.04W, full screen illumination 0 .08W\u003c\/li\u003e\n\u003cli\u003eApplication: 0.96 inch OLED module used to display graphics and text information directly on your microcontroller project; Supports a variety of chips: compatible with Arduino Mega, Pi, 51 MCU, STIM 32, etc.\u003c\/li\u003e \u003cli\u003eSelf-illumination: No backlight is required and the display can self-illuminate. it has high contrast, bright and clear dots, even small fonts are easy to read\u003c\/li\u003e \u003cli\u003eIntegrated driver IC: Communication: I2C\/IIC interface, only 2 I\/O ports are needed; Compatible with MMDVM, Pi-Star and compatible with Pi\u003c\/li\u003e\n\u003cli\u003eAbout fonts: There are no fonts embedded in the OLED controller. Users can create fonts through font generation software\u003c\/li\u003e\n\u003c\/ul\u003e"}
