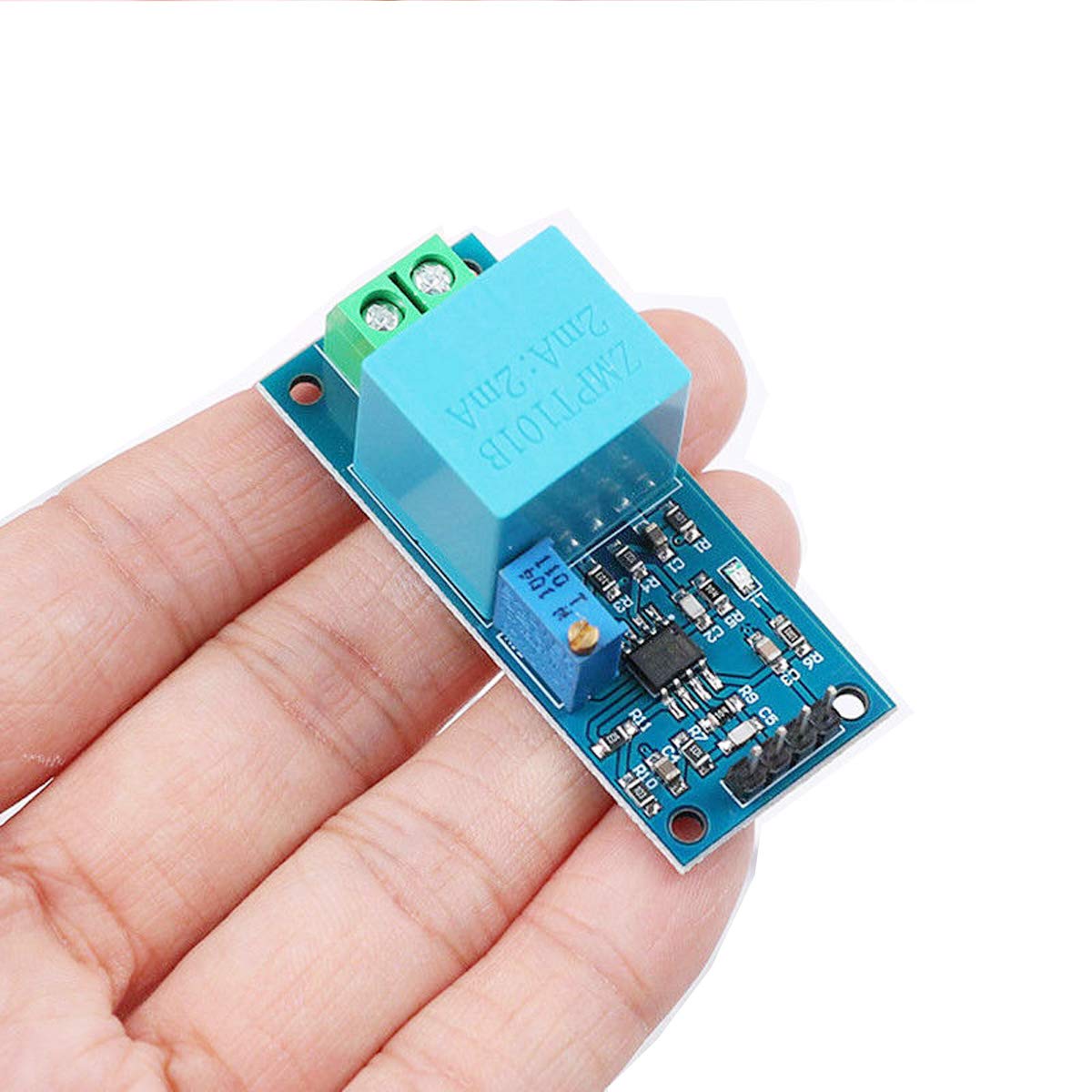

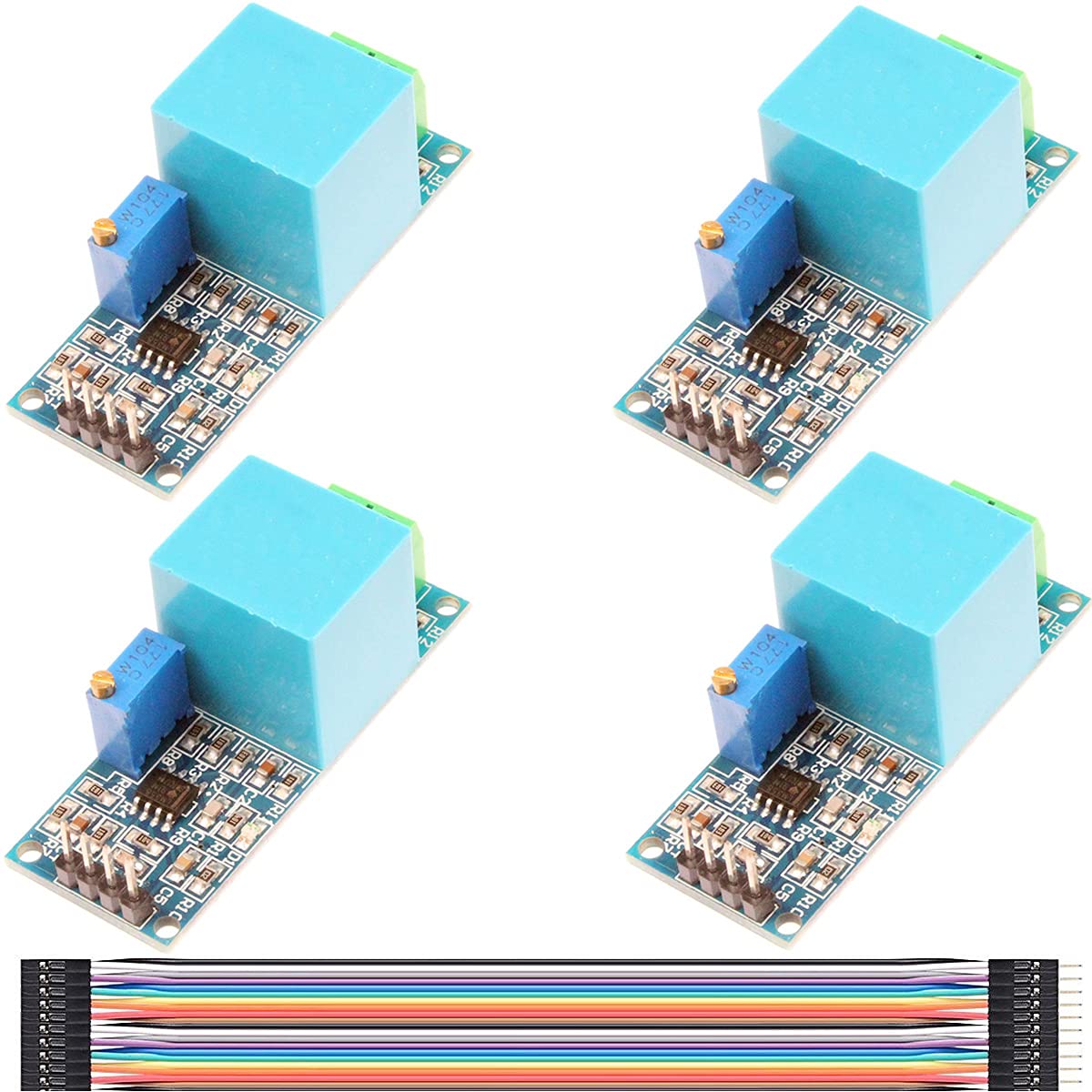

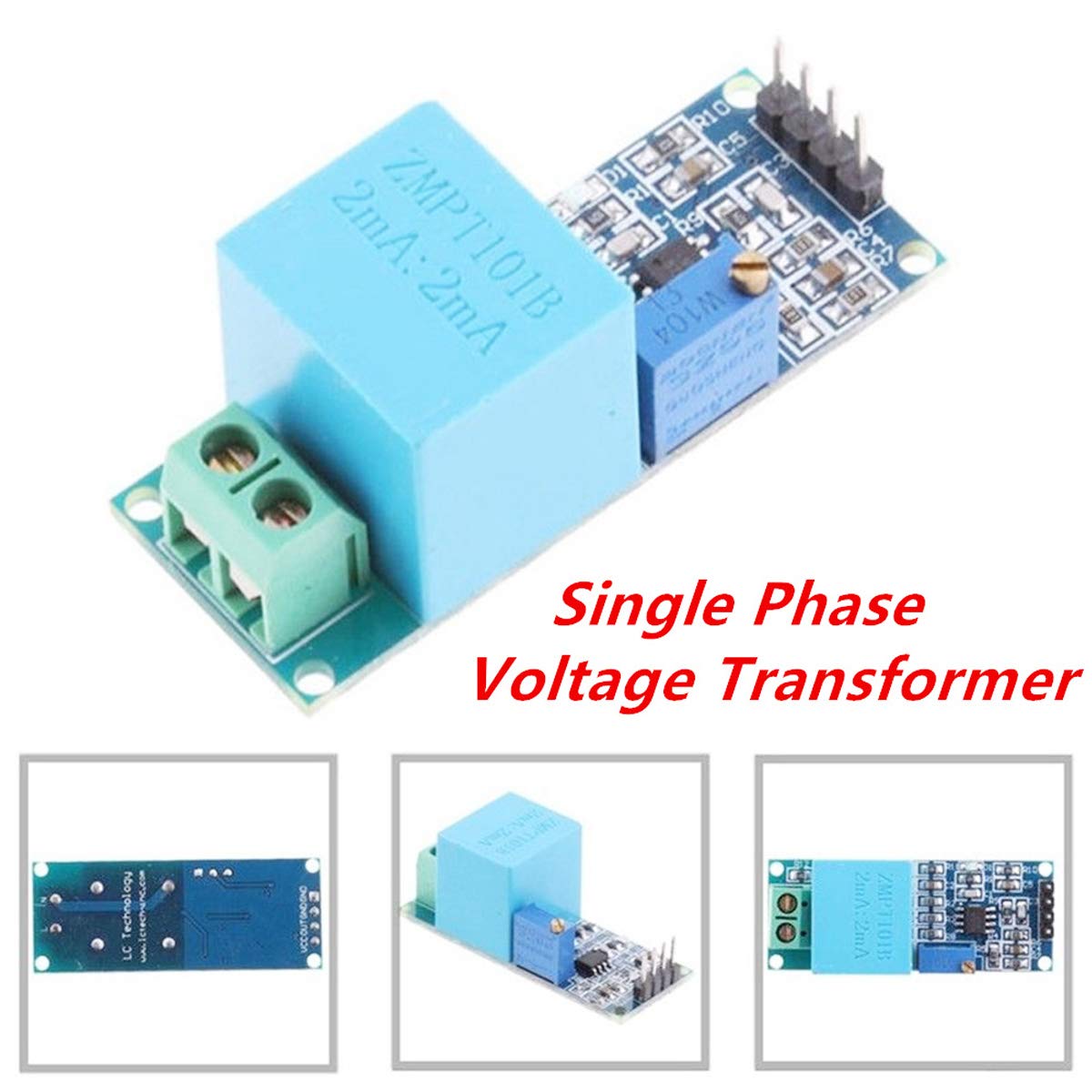

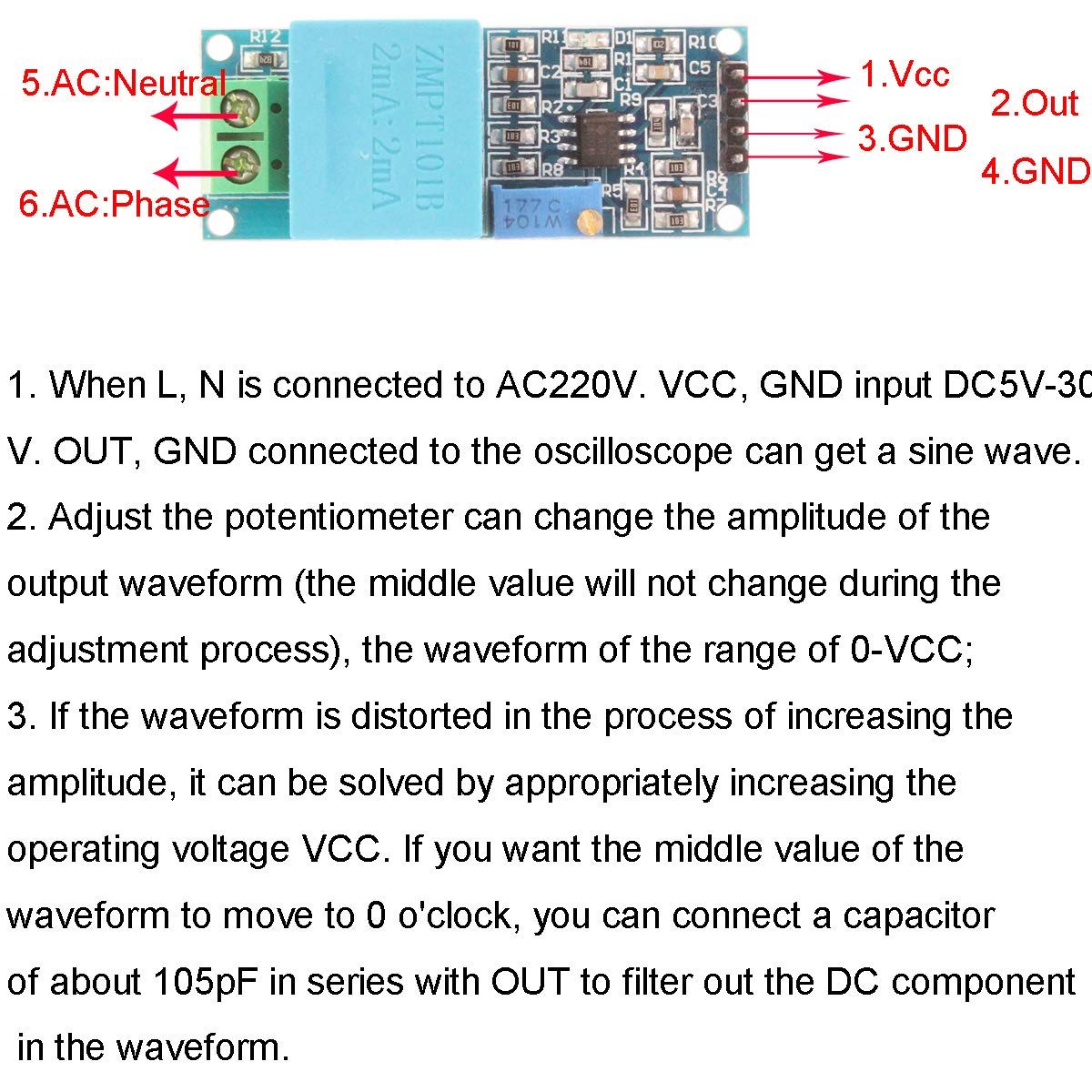

{"id":15190055420064,"title":"Youmile 4pcs ZMPT101B Active Single Phase Voltage Transformer Module Voltage converter module, 5-30V single phase AC sensor board with active output, supply voltage with Dupont line","handle":"youmile-4pcs-zmpt101b-active-single-phase-voltage-transformer-module-voltage-converter-module-5-30v-single-phase-ac-sensor-board-with-active-output-supply-voltage-with-dupont-line","description":"\u003ch3\u003eYoumile 4 Pcs ZMPT101B Active Single Phase Voltage Transformer Module Voltage converter module, 5-30V single phase AC sensor board with active output, supply voltage with Dupont line\u003c\/h3\u003e \u003cp id=\"b\"\u003eProduct description Instructions: 1. When L, N is connected to AC220V. VCC, GND input DC5V-30V. OUT, GND connected to the oscilloscope can get a sine wave. 2. Adjust the potentiometer can change the amplitude of the output waveform (the middle value will not change during the adjustment process), the waveform of the range of 0-VCC; 3. If the waveform is distorted in the process of increasing the amplitude, it can be solved by appropriately increasing the operating voltage VCC. If you want the middle value of the waveform to move to 0 o'clock, you can connect a capacitor of about 105pF in series with OUT to filter out the DC component in the waveform. Package Includes: 4 x Voltage Transformer Module 1 x Dupont Line\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eAnalog voltage output: The module can measure AC voltage within 250V and the corresponding Analog output can be adjusted.\u003c\/li\u003e \u003cli\u003eOutput signal: The output signal is a sine wave and the median value of the waveform (DC component) is 1\/2 VCC.\u003c\/li\u003e \u003cli\u003eWith ZMPT101B series: Single-phase AC output inductance module with AC active voltage, equipped with ZMPT101B series high-precision voltage transformer and high-precision operational amplifier current, easily up to 250V within the AC signal acquisition\u003c\/li\u003e \u003cli\u003eOperative amplifier circuit: High-precision integrated amplifier circuit, the signal for the exact sampling and corresponding compensation as well other functions\u003c\/li\u003e \u003cli\u003eVoltage transformer On: Precision micro voltage transformer on board. Supply voltage: 5-30V\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2025-10-01T15:54:50+10:00","created_at":"2025-10-01T15:54:47+10:00","vendor":"Youmile","type":"Current sensors","tags":["industryDE"],"price":16600,"price_min":16600,"price_max":16600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":52863913132192,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B091YR9FKB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Youmile 4pcs ZMPT101B Active Single Phase Voltage Transformer Module Voltage converter module, 5-30V single phase AC sensor board with active output, supply voltage with Dupont line","public_title":null,"options":["Default Title"],"price":16600,"weight":700,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/dingoship.com.au\/cdn\/shop\/files\/de-B091YR9FKB.jpg?v=1775752371","\/\/dingoship.com.au\/cdn\/shop\/files\/61stbshRRuL.jpg?v=1759298089","\/\/dingoship.com.au\/cdn\/shop\/files\/61vBP0TP31L.jpg?v=1759298089","\/\/dingoship.com.au\/cdn\/shop\/files\/61snnZksNoL.jpg?v=1759298089","\/\/dingoship.com.au\/cdn\/shop\/files\/71hXBGReutL.jpg?v=1759298089","\/\/dingoship.com.au\/cdn\/shop\/files\/61PHJYFvxUL.jpg?v=1759298089","\/\/dingoship.com.au\/cdn\/shop\/files\/71zA00Kx0jL.jpg?v=1759298089"],"featured_image":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B091YR9FKB.jpg?v=1775752371","options":["Title"],"media":[{"alt":null,"id":38370410365088,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B091YR9FKB.jpg?v=1775752371"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/de-B091YR9FKB.jpg?v=1775752371","width":1200},{"alt":null,"id":38370410397856,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61stbshRRuL.jpg?v=1759298089"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61stbshRRuL.jpg?v=1759298089","width":1200},{"alt":null,"id":38370410430624,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61vBP0TP31L.jpg?v=1759298089"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61vBP0TP31L.jpg?v=1759298089","width":1200},{"alt":null,"id":38370410463392,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61snnZksNoL.jpg?v=1759298089"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61snnZksNoL.jpg?v=1759298089","width":1200},{"alt":null,"id":38370410496160,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71hXBGReutL.jpg?v=1759298089"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71hXBGReutL.jpg?v=1759298089","width":1200},{"alt":null,"id":38370410528928,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61PHJYFvxUL.jpg?v=1759298089"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/61PHJYFvxUL.jpg?v=1759298089","width":1200},{"alt":null,"id":38370410561696,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71zA00Kx0jL.jpg?v=1759298089"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/dingoship.com.au\/cdn\/shop\/files\/71zA00Kx0jL.jpg?v=1759298089","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eYoumile 4 Pcs ZMPT101B Active Single Phase Voltage Transformer Module Voltage converter module, 5-30V single phase AC sensor board with active output, supply voltage with Dupont line\u003c\/h3\u003e \u003cp id=\"b\"\u003eProduct description Instructions: 1. When L, N is connected to AC220V. VCC, GND input DC5V-30V. OUT, GND connected to the oscilloscope can get a sine wave. 2. Adjust the potentiometer can change the amplitude of the output waveform (the middle value will not change during the adjustment process), the waveform of the range of 0-VCC; 3. If the waveform is distorted in the process of increasing the amplitude, it can be solved by appropriately increasing the operating voltage VCC. If you want the middle value of the waveform to move to 0 o'clock, you can connect a capacitor of about 105pF in series with OUT to filter out the DC component in the waveform. Package Includes: 4 x Voltage Transformer Module 1 x Dupont Line\u003c\/p\u003e \u003ch3\u003eProduct Features\u003c\/h3\u003e \u003cul class=\"a\"\u003e \u003cli\u003eAnalog voltage output: The module can measure AC voltage within 250V and the corresponding Analog output can be adjusted.\u003c\/li\u003e \u003cli\u003eOutput signal: The output signal is a sine wave and the median value of the waveform (DC component) is 1\/2 VCC.\u003c\/li\u003e \u003cli\u003eWith ZMPT101B series: Single-phase AC output inductance module with AC active voltage, equipped with ZMPT101B series high-precision voltage transformer and high-precision operational amplifier current, easily up to 250V within the AC signal acquisition\u003c\/li\u003e \u003cli\u003eOperative amplifier circuit: High-precision integrated amplifier circuit, the signal for the exact sampling and corresponding compensation as well other functions\u003c\/li\u003e \u003cli\u003eVoltage transformer On: Precision micro voltage transformer on board. Supply voltage: 5-30V\u003c\/li\u003e\n\u003c\/ul\u003e"}
