ZOSKAY 1X DS3218 Update servo 20KG Full Metal Gear Digital servo Baja servo Waterproof servo for Baja Cars( Control Angle 270)
ZOSKAY 1X DS3218 Update servo 20KG Full Metal Gear Digital servo Baja servo Waterproof servo for Baja Cars( Control Angle 270)

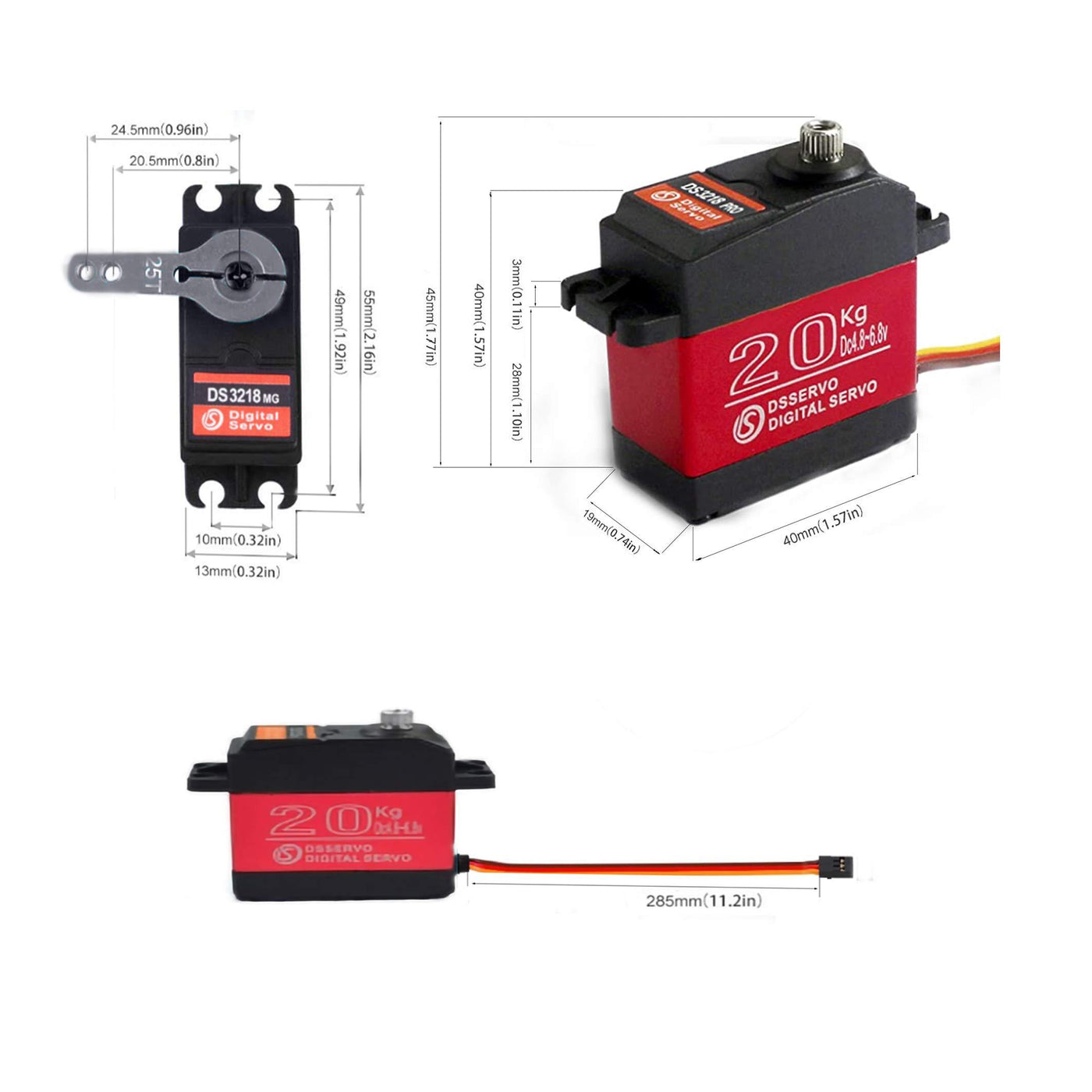

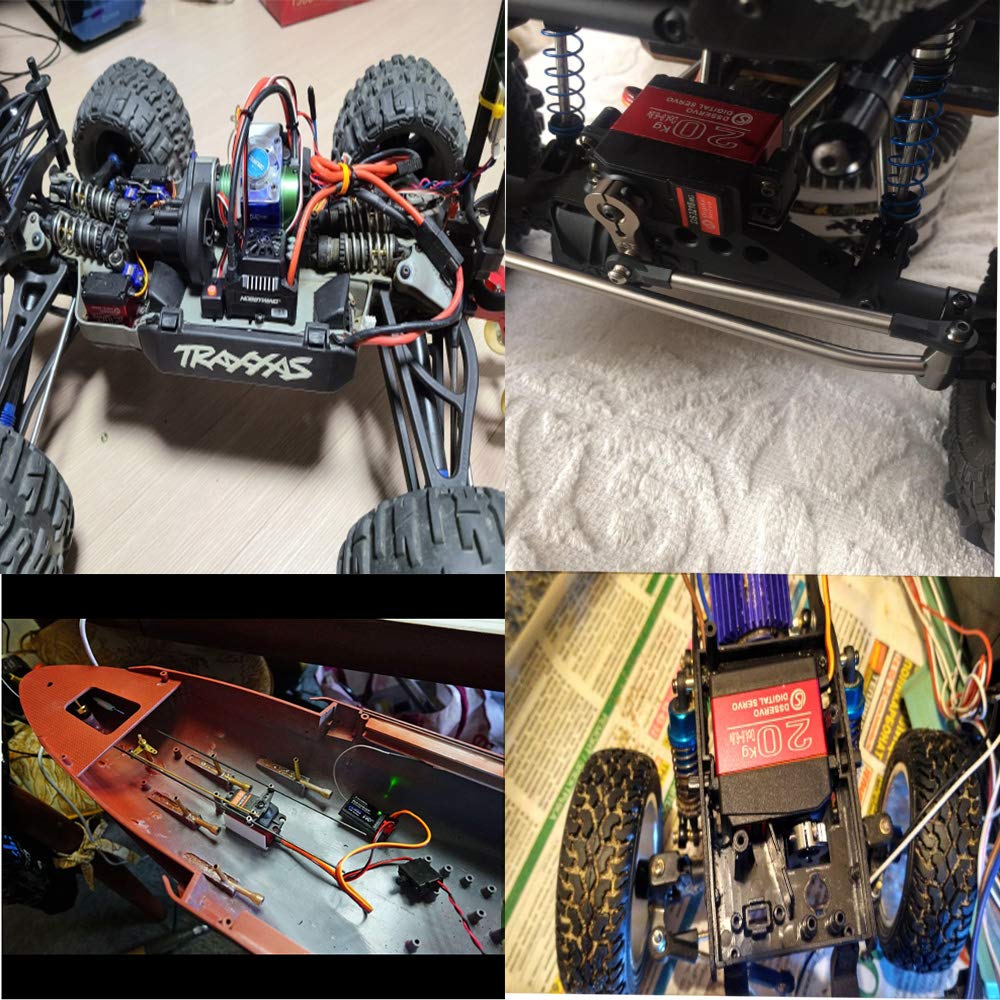

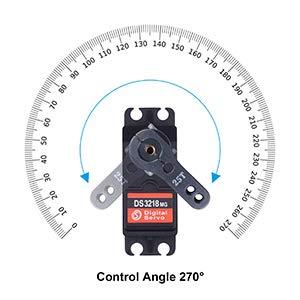

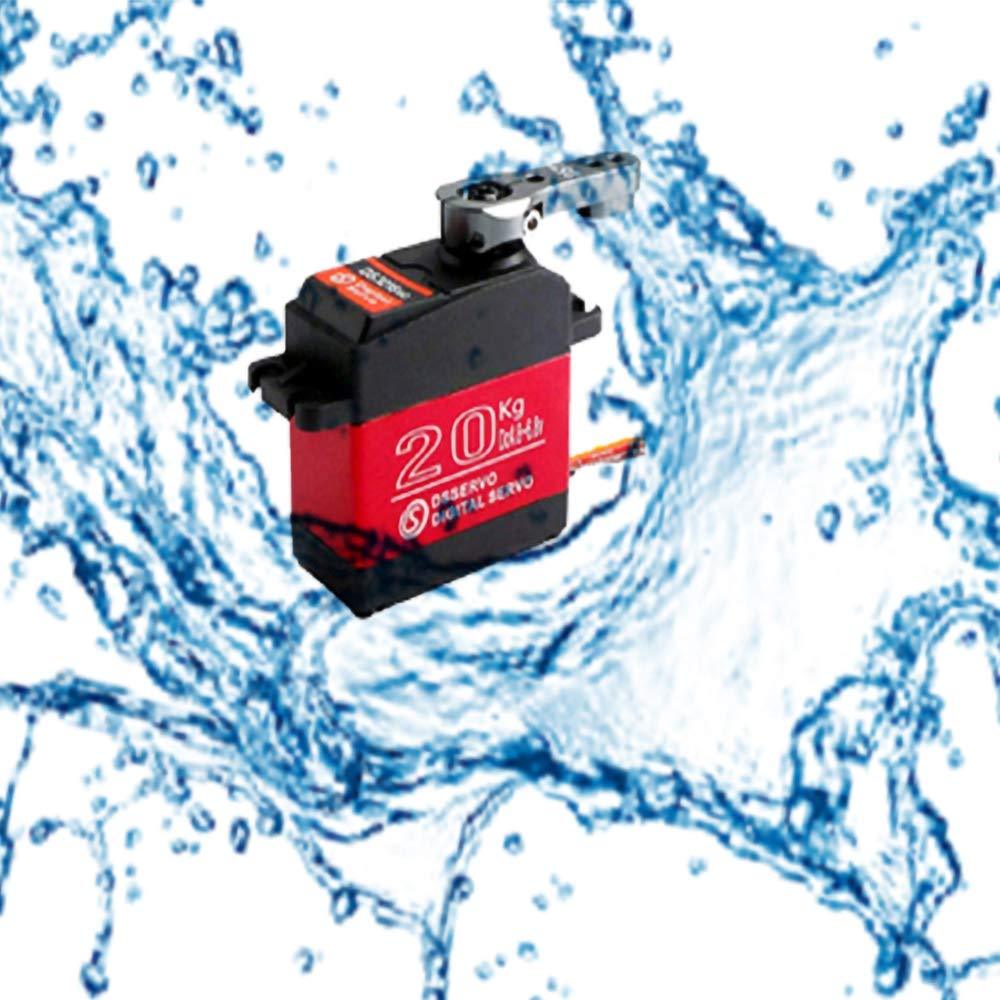

DS3218 20KG servo Stable, low noise, waterproof, dust- proof, advanced linearity and accuracy HIGH PRECISION&MONSTER TORQUE maximum torque is up to 21.5 kg/cm (298.5 oz/in)@6.8V and speed up to 0.14 sec/60°(6.8V)@6.8V Operating voltage: 4.8 - 6.8V Operating speed ( 5.0V ): 0.15 sec/60 degree Operating speed ( 6.8V ): 0.13 sec/60 degree Stall torque ( 5.0V ): 18kg/cm Stall torque ( 6.8V ): 21.5kg/cm Operating travel:270deg(PWM 500-2500mus) Dead band:3mus Working frequency: 50-333Hz Connector wire: About 280mm Gear type: Metal Motor Type: DC motor CE Certification: Yes Standard size ideal for 1/8 1/10 1/12 Buggy /Monster Trucks/RC car/boat/plane/helicopter Size: 1.58 x 0.79 x 1.60 in Weight: 60 g (2.12 oz) Cable length:11.2 in Yellow:Signal Red:Positive pole Brown:Negative pole Operating travel:270degree Operating Voltage: 4.8 ~ 6.8 DC Volts Operating travel:180deg(PWM 500-2500mus) Read more WATERPROOF DESIGN IP67 waterproof Digital servo motor uses high-precision production technology to reduce production deviation and improve product tightness, used IP67 super Waterproof design Read more Fit the Redcat Gen 8 perfect Plenty of power steering servo ideal for 1/8 1/10 Buggy /Monster Trucks/RC car/boat/plane/helicopter Easy install Read more 20KG Digital Servo 180° 25KG Digital Servo 180° 35kg high Torque Coreless Motor servo 180° 35kg high Torque Coreless Motor servo 270° 20kg/0.09S High Speed Servo 270° 60KG Digital Servo 180°
Product Features

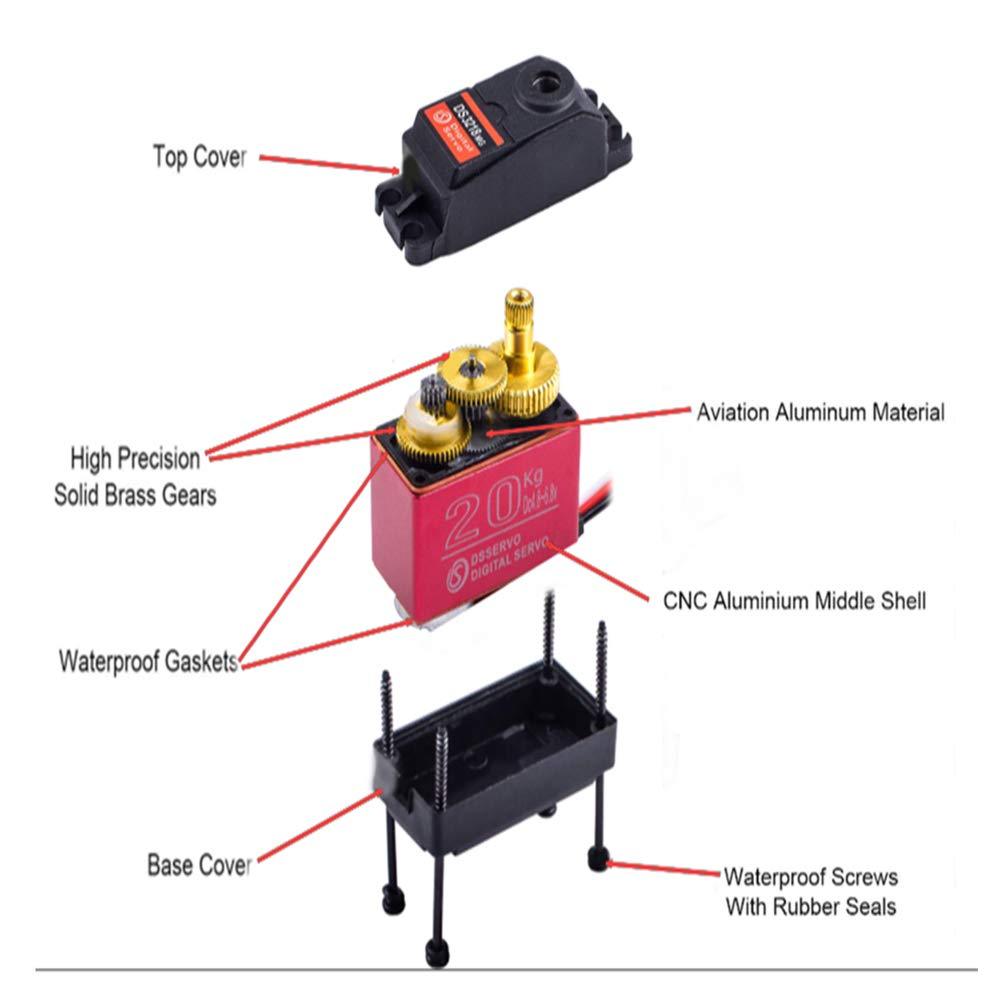

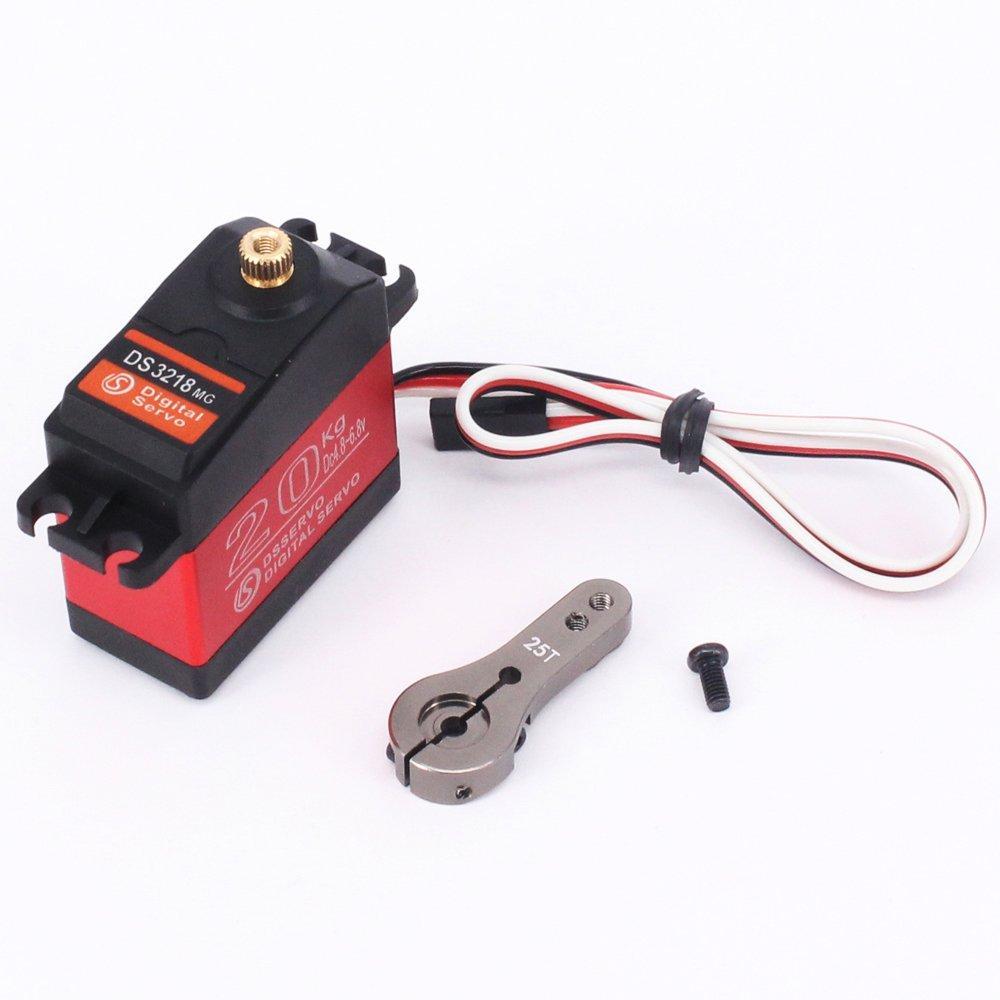

- DS3218 20KG Large Torque Digital Servo
- 25T Adjustable metal servo arm
- High performance digital standard servo
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell
